Description

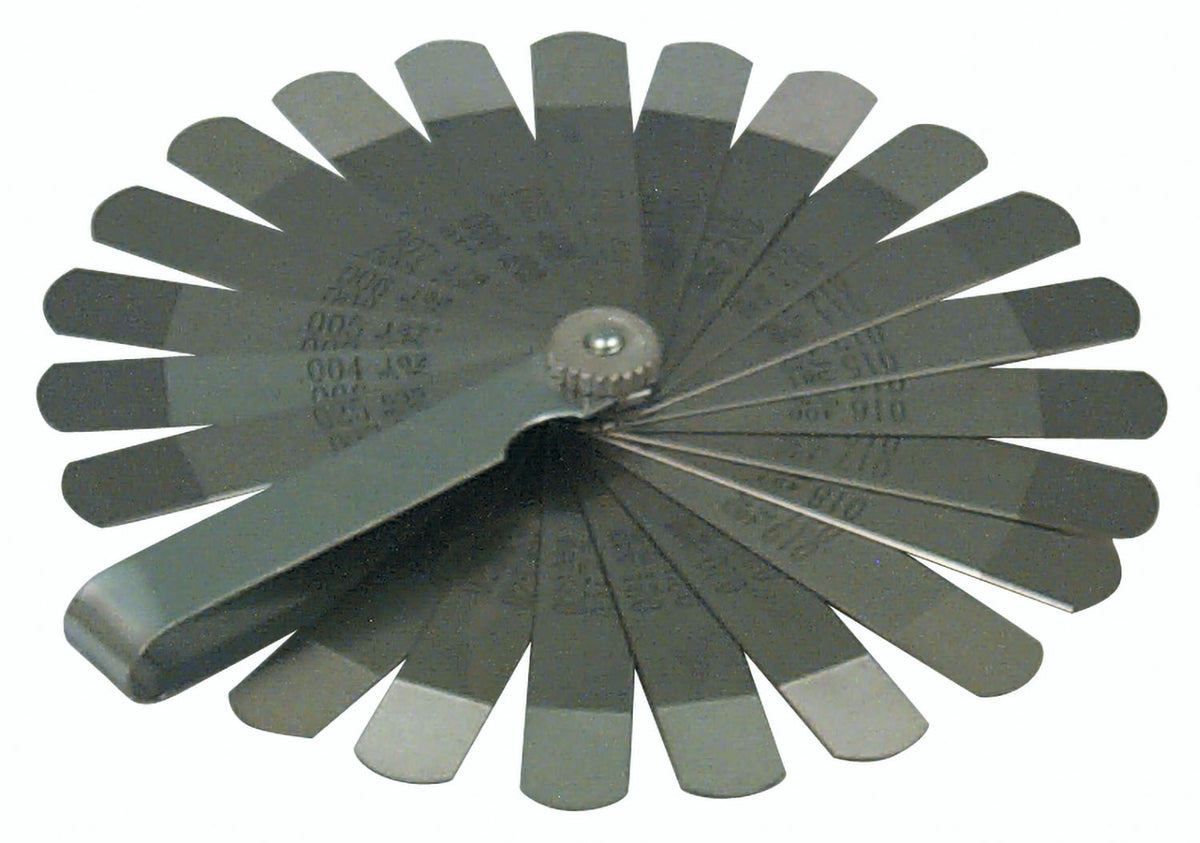

The Lisle 68150 is a go/no-go feeler gauge with 22 steel blades for checking gaps such as valve lash, point gaps and other small clearances in automotive and general mechanical work. Each blade is stepped, with a lower and a higher thickness on the same blade, running from .004/.006 in up to .025/.027 in, and the steps differ by .002 in from one blade to the next. Blades are about 1/2 in wide and 3-1/4 in long.
Choose the blade pair that matches the clearance in the equipment maker's specification, and keep the blades clean and lightly oiled to prevent rust. Do not force a blade into a gap, as bending it can change its reading. Lisle lists the item with the UPC 083045681502. Sold as one gauge.
Features
- 22 steel blades covering .004 to .027 in (0.102 to 0.686 mm)
- Stepped blades with a lower and a higher value for go/no-go checks
- .002 in difference between successive blades
- Blades about 1/2 in wide by 3-1/4 in long
- Lisle part number 68150, sold as a single gauge
Specifications
| Brand | Lisle |
|---|---|
| Manufacturer part number (MPN) | 68150 |
| Big Papa SKU | BP-G-LIS-68150 |
| Model | 68150 |
| Type | Go/no-go feeler gauge |
| Blades | 22 steel blades |
| Thickness range | .004-.027 in (0.102-0.686 mm) |
| Last blade | .025/.027 in (0.635/0.686 mm) |
| Step between blades | .002 in |
| Blade size | approx. 1/2 x 3-1/4 in |
| UPC | 083045681502 |
| Sold per | 1 gauge |
