Description

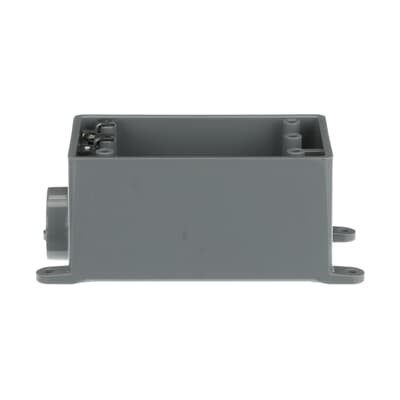

Carlon FSEB-075 is a grey PVC box for a single device, fitted with one 3/4 in hub. The FSE style is meant for dead-end terminations, where a conduit run stops at the box.
Installers choose it to mount a switch or receptacle indoors or outdoors. Mounting feet allow fixing to a surface, and a grounding strap and knockouts are provided. The manufacturer catalogue lists an 18 cu. in. volume. Supplied as one box.
Features
- Single-gang box with a 3/4 in hub
- FSE style for dead-end terminations
- 18 cu. in. volume, per the manufacturer catalogue
- Mounting feet and grounding strap included
- Grey PVC body with knockouts
Specifications
| Specification | Value |
|---|---|
| Model | FSEB-075 |
| Quantity | 1 piece |
| Type | FSE single-gang device box |
| Hub size | 3/4 in |
| Volume | 18 cu. in. |
| Material | PVC |
| Colour | grey |
| Knockouts | yes |
| Mounting | wall or ceiling, with mounting feet |
| Weight | approx. 0.25 kg (estimate) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| FSEB-075 | BP-HW-CRL-FSEB075 |
