Description

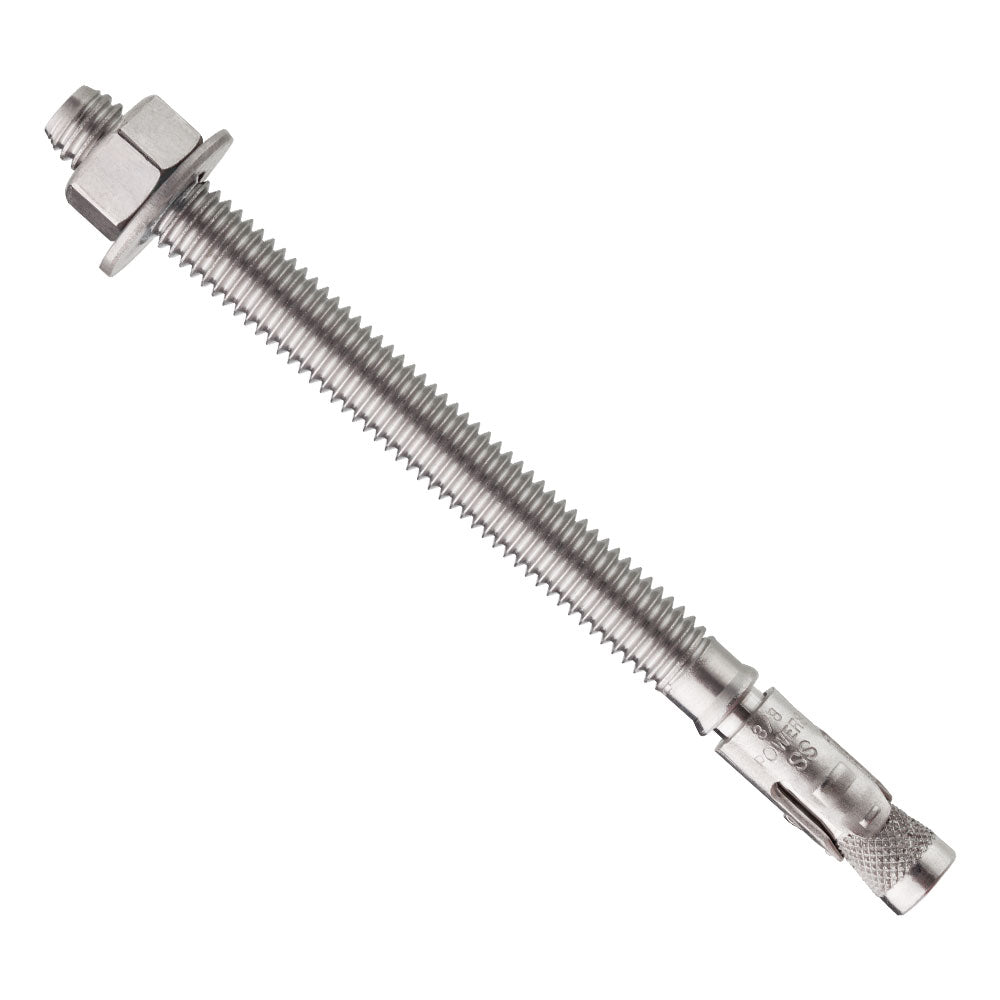

Single DeWalt Power-Stud+ SD4 wedge expansion anchor, catalogue number 7315SD4-PWR: 3/8 in (9.5 mm) diameter, 3-3/4 in (95 mm) overall length, with about 2-3/8 in (60 mm) of threaded length. The body is Type 304 stainless steel, and the nut, washer and expansion clip are also stainless; the maker packs it in boxes of 50, but it is sold here by the piece.
It is a fully threaded, torque-controlled anchor that the maker lists for concrete, for example for railings, brackets, pipe supports and equipment anchorage. A stainless anchor is the usual choice where zinc plating would rust; the grade and size remain the specifier’s decision. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Type 304 stainless steel body with stainless nut, washer and clip
- Fully threaded stud, torque-controlled expansion
- Drill bit diameter equal to anchor diameter (3/8 in)
- Can be installed through standard fixture holes
- Length code and marking stamped on the head of each anchor
Specifications
| Specification | Value |
|---|---|
| Model | 7315SD4-PWR |
| Quantity | 1 anchor (sold singly) |
| Series | Power-Stud+ SD4 |
| Diameter x length | 9.5 x 95 mm (3/8 x 3-3/4 in) |
| Approx. thread length | 60 mm (2-3/8 in) |
| Material | Type 304 stainless steel body; 316 stainless steel nut and expansion clip |
| Thread | 3/8-16 UNC |
| Drill bit | 9.5 mm (3/8 in) |
| Installation torque | 34 N·m (25 ft-lbf) |
| Fixture hole | 11.1 mm (7/16 in) |
| Wrench size | 14 mm (9/16 in) |
| Maker pack | 50 pcs |
| Weight | approx. 0.06 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7315SD4-PWR | BP-G-DEW-7315SD4 |
