Description

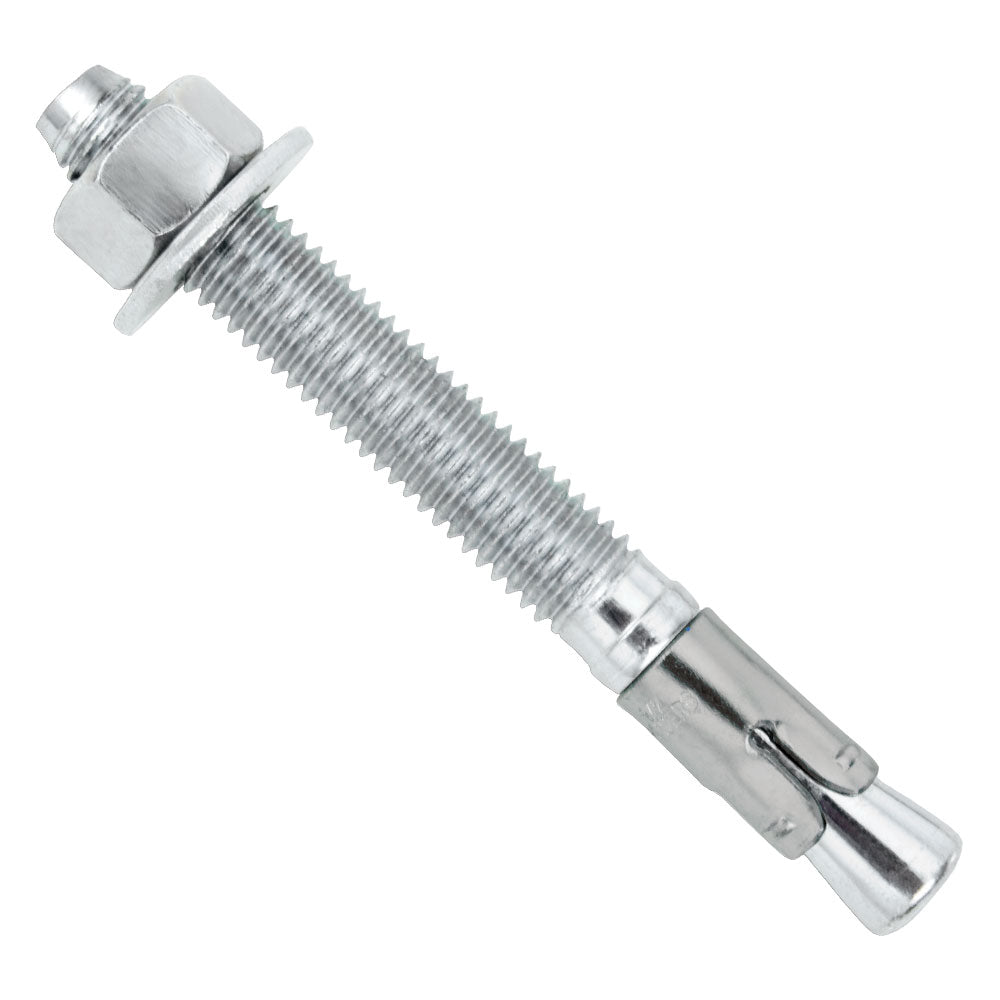

Single DeWalt Power-Stud+ SD2 wedge expansion anchor, catalogue number 7414SD2-PWR: 3/8 in (9.5 mm) diameter, 3-1/2 in (89 mm) overall length, with about 2-1/4 in (57 mm) of threaded length. The body, nut and washer are zinc-plated carbon steel, and the expansion clip is Type 316 stainless steel; the maker packs it in boxes of 50, but it is sold here by the piece.
It is a fully threaded, torque-controlled anchor that the maker lists for concrete, lightweight concrete and concrete over steel deck, for example for railings, brackets, pipe supports and equipment anchorage. Note that only the clip is stainless: the body is zinc-plated carbon steel, so choose a stainless series where the anchor will be exposed to damp. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Zinc-plated carbon steel body with Type 316 stainless steel clip
- Fully threaded stud, torque-controlled expansion
- Drill bit diameter equal to anchor diameter (3/8 in)
- Can be installed through standard fixture holes
- Length code and marking stamped on the head of each anchor
Specifications
| Specification | Value |
|---|---|
| Model | 7414SD2-PWR |
| Quantity | 1 anchor (sold singly) |
| Series | Power-Stud+ SD2 |
| Diameter x length | 9.5 x 89 mm (3/8 x 3-1/2 in) |
| Approx. thread length | 57 mm (2-1/4 in) |
| Material | Zinc-plated carbon steel body with 316 stainless steel expansion clip |
| Thread | 3/8-16 UNC |
| Drill bit | 9.5 mm (3/8 in) |
| Installation torque | 27 N·m (20 ft-lbf) |
| Fixture hole | 11.1 mm (7/16 in) |
| Wrench size | 14 mm (9/16 in) |
| Maker pack | 50 pcs |
| Weight | approx. 0.054 kg (from the maker weight per 100) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7414SD2-PWR | BP-G-DEW-7414SD2 |
