Description

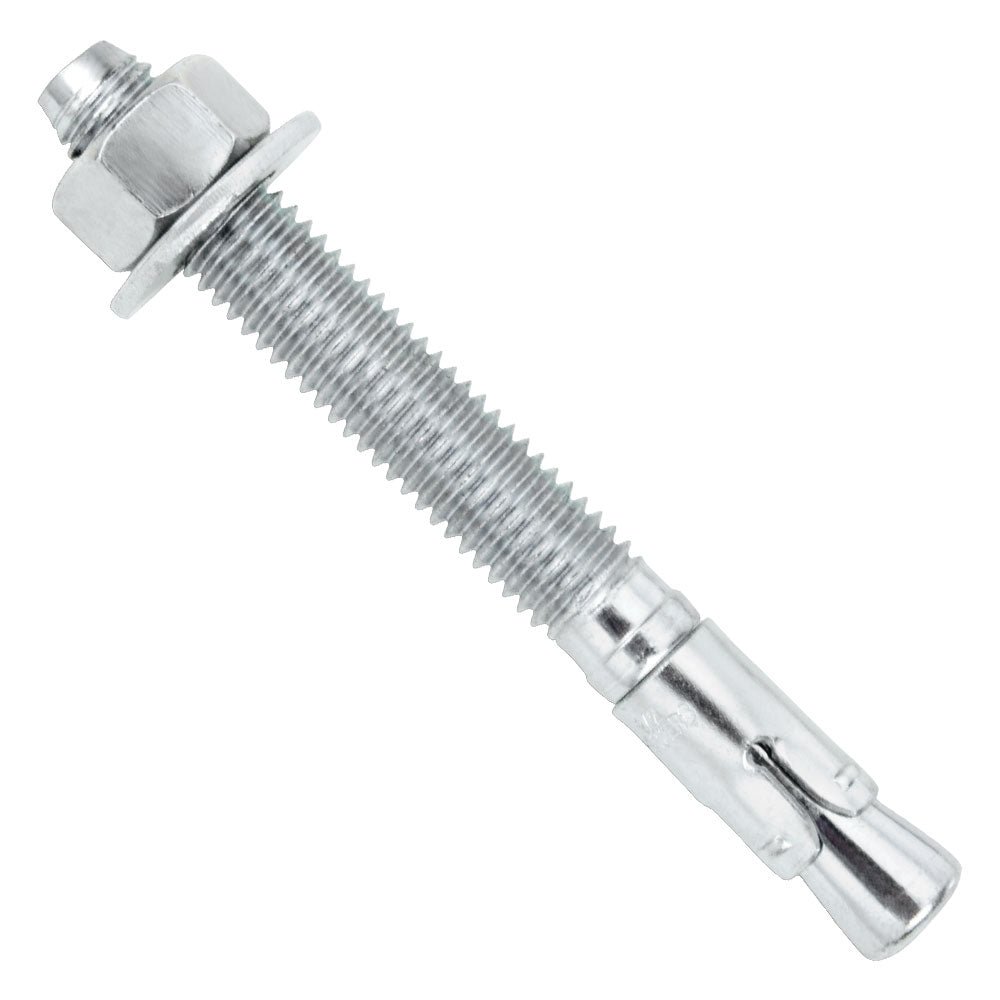

Single DeWalt Power-Stud+ SD1 7423SD1 wedge expansion anchor, 1/2 in x 4-1/2 in (12.7 mm x 114 mm), sold per piece (not by the box). It is a fully threaded, torque-controlled anchor with a zinc-plated carbon steel body, expansion clip, nut and washer, supplied with its nut and washer. The maker describes it for cracked and uncracked concrete, lightweight concrete, concrete-filled steel deck and grouted masonry.
Useful for fixing brackets, angles, rails, racking and equipment bases to concrete. Hole diameter equals the anchor diameter (1/2 in), and the published minimum nominal embedment is 2-1/4 in (57 mm). Installation must follow the manufacturer's instructions and the requirements of your project.
Features
- Sold per piece, with nut and washer
- Fully threaded, torque-controlled wedge expansion design
- Zinc-plated carbon steel body, expansion clip, nut and washer
- Drill bit diameter equal to anchor diameter (1/2 in)
- Length mark stamped on the head of each anchor
Specifications
| Specification | Value |
|---|---|
| Model | 7423SD1 |
| Quantity | 1 anchor (sold per piece) |
| Size | 12.7 mm x 114 mm (1/2 x 4-1/2 in) |
| Material | Zinc-plated carbon steel |
| Approx. thread length | 70 mm (2-3/4 in) |
| Drill bit diameter | 12.7 mm (1/2 in) |
| Min. nominal embedment | 57 mm (2-1/4 in) |
| Min. hole depth | 64 mm (2-1/2 in) |
| Installation torque in concrete | 54 N·m (40 ft-lbf) |
| Weight | approx. 0.14 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7423SD1-PWR | BP-G-DEW-7423SD1 |
