Description

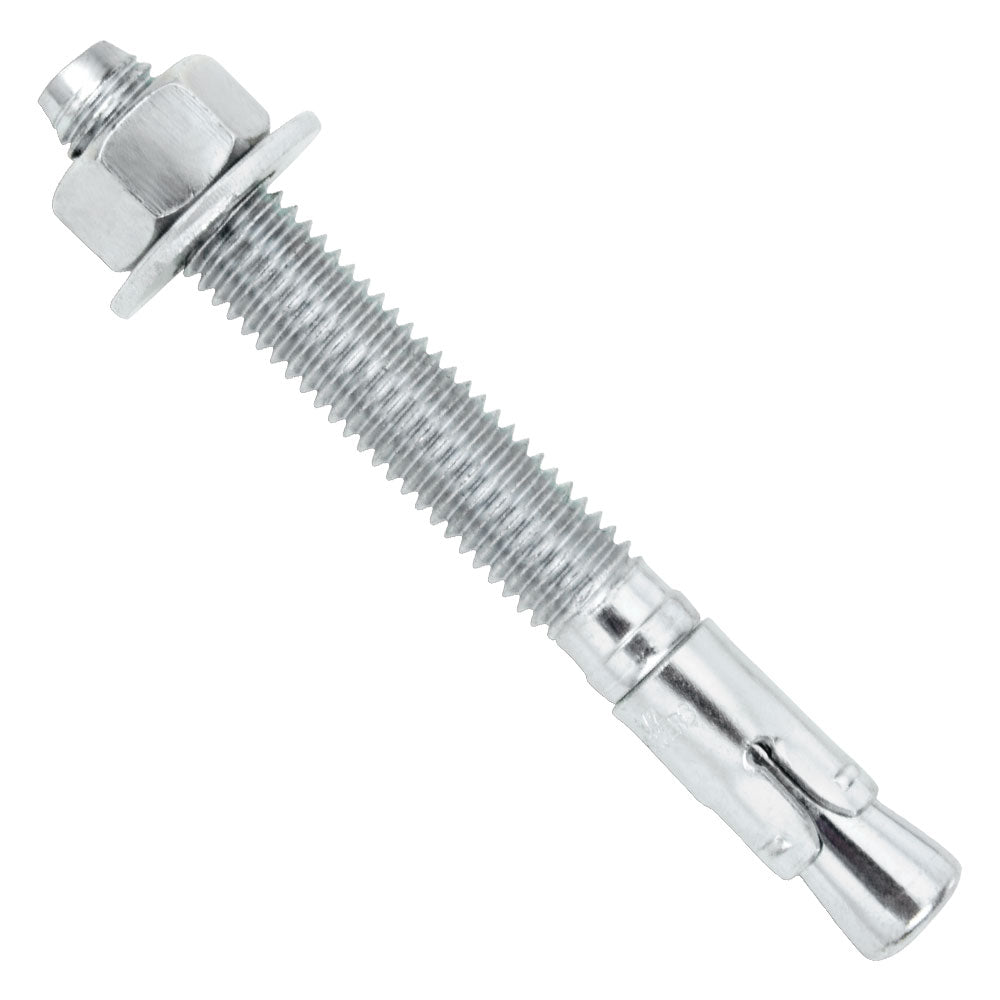

DeWalt Power-Stud+ SD1 7448SD1 wedge anchor, 3/4 in (19 mm) diameter by 8-1/2 in (216 mm) long, sold individually (per piece). It is a fully threaded, torque-controlled expansion anchor with a zinc-plated carbon steel body, expansion clip, nut and washer, and a 6 in (152 mm) approximate thread length. The nominal drill bit size equals the anchor diameter.
Designed for use in concrete and grouted masonry: set it in a hole drilled to at least 3-3/8 in (86 mm) nominal embedment, then tighten the nut to the 110 ft-lbf (149 N·m) torque the maker lists for concrete. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Fully threaded, torque-controlled wedge expansion anchor
- Zinc-plated carbon steel body, clip, nut and washer
- Nominal drill bit size equals anchor diameter
- Can be installed through standard fixture holes
- Length ID mark stamped on the head of each anchor
Specifications
| Specification | Value |
|---|---|
| Model | 7448SD1 (catalogue 7448SD1-PWR) |
| Quantity | 1 anchor (sold individually) |
| Diameter | 3/4 in (19 mm) |
| Overall length | 8-1/2 in (216 mm) |
| Thread length (approx.) | 6 in (152 mm) |
| Material | Zinc-plated carbon steel |
| Drill bit | 3/4 in (19 mm) ANSI carbide bit |
| Minimum nominal embedment | 3-3/8 in (86 mm) |
| Installation torque (concrete) | 110 ft-lbf (149 N·m) |
| Wrench/socket size | 1-1/8 in (29 mm) |
| Weight | approx. 0.56 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7448SD1-PWR | BP-G-DEW-7448SD1 |
