Description

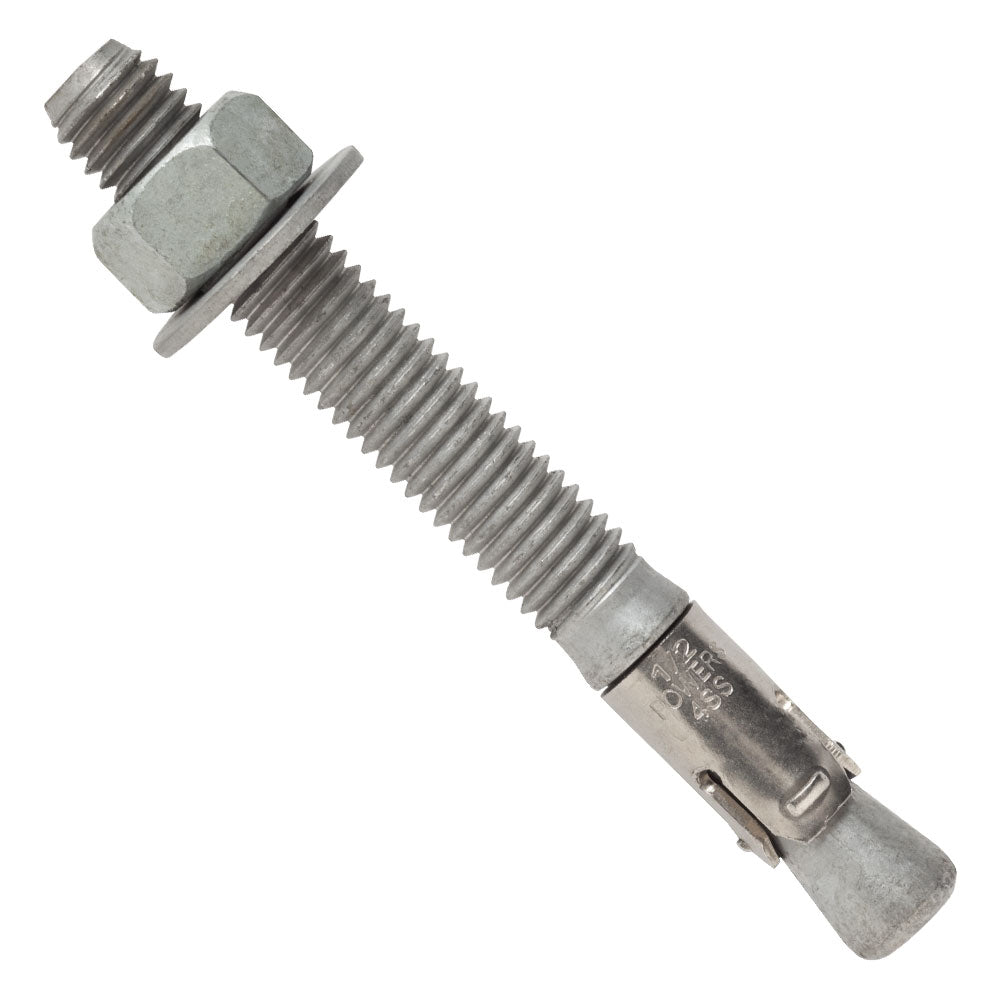

Single DeWalt Power-Stud HD5 7723HD5-PWR wedge expansion anchor, 1/2 in (12.7 mm) in diameter and 4-1/2 in (114 mm) long, with 2-3/4 in (70 mm) of UNC thread. The carbon steel body, nut and washer are hot-dip galvanized, and the expansion clip is 304 stainless steel. Sold individually (per piece); the manufacturer packs this size in boxes of 50.
This fully threaded, torque-controlled anchor is intended for normal-weight concrete, lightweight concrete and grouted concrete masonry, for uses such as fencing, posts and railings, ledgers and storage structures. It is drilled with a 1/2 in bit, the same as the anchor diameter, and can be installed through a standard fixture hole. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Fully threaded, torque-controlled wedge anchor
- Hot-dip galvanized carbon steel body, nut and washer
- 304 stainless steel expansion clip
- Drill bit size equal to anchor diameter (1/2 in)
- Length code stamped on the head of each anchor
Specifications
| Specification | Value |
|---|---|
| Model | 7723HD5-PWR |
| Quantity | 1 anchor (sold individually) |
| Size | 1/2 x 4-1/2 in (12.7 x 114 mm) |
| Thread length | 2-3/4 in (70 mm) |
| Material | Hot-dip galvanized carbon steel; 304 stainless steel clip |
| Drill bit diameter | 1/2 in (12.7 mm) |
| Minimum nominal embedment (per diameter) | 2 to 3-3/4 in (51 to 95 mm) |
| Installation torque in concrete | 40 ft-lbf (54 N·m) |
| Socket size | 3/4 in |
| Fixture hole clearance | 9/16 in (14 mm) |
| Manufacturer pack | 50 per box |
| Weight | approx. 0.15 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7723HD5-PWR | BP-G-DEW-7723HD5 |
