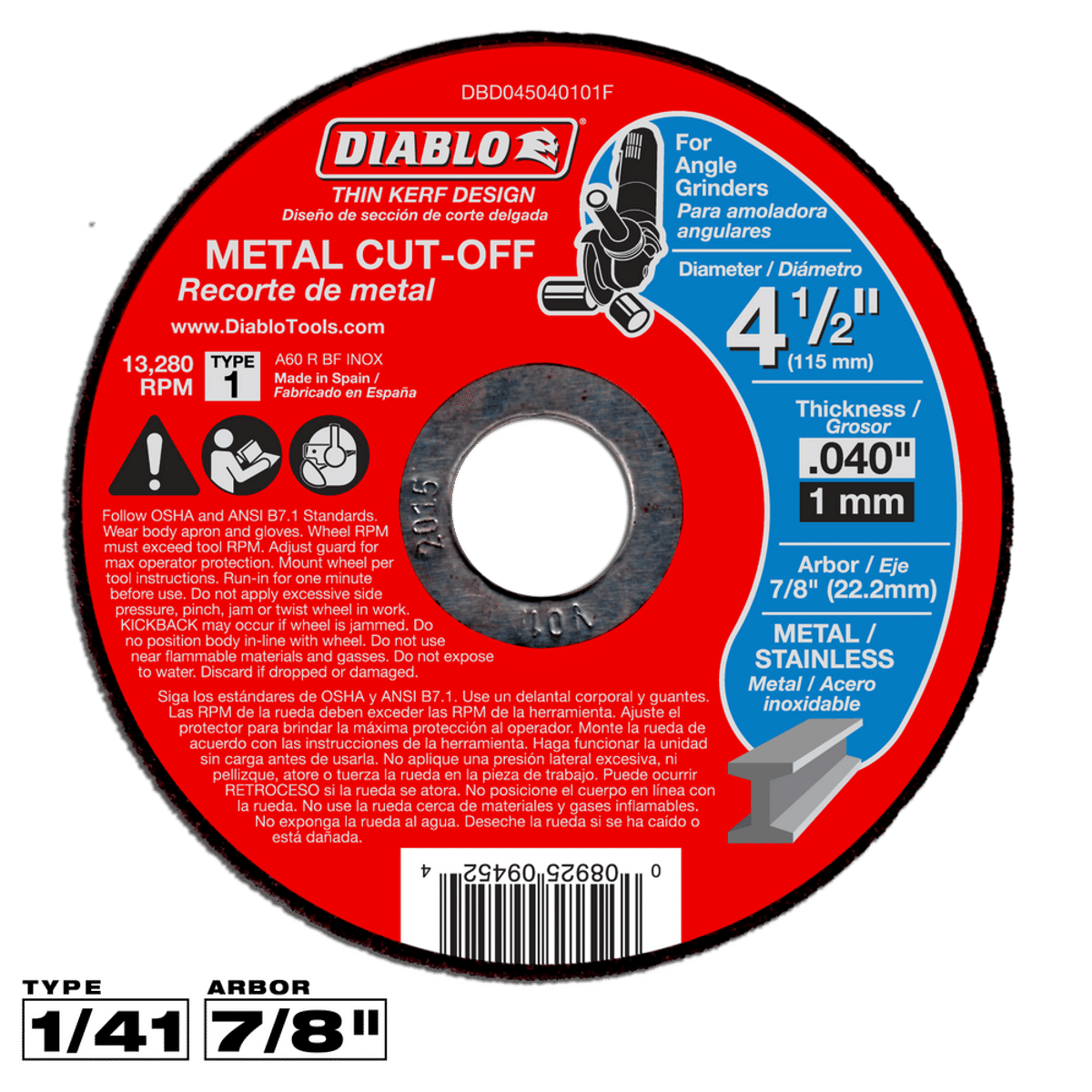

Diablo CDD045040101F Type 1 Thin-Kerf Cut-Off Disc for Metal, 115 mm x 1 mm x 22.2 mm (4-1/2 x 0.040 x 7/8 in)

Single Diablo type 1 (flat) cut-off disc, 4-1/2 in (115 mm) in diameter, 0.040 in (1 mm) thick, with a 7/8 in (22.2 mm) arbor hole. The bonded disc uses an aluminum oxide abrasive blend, and its thin profile is intended for a narrow, quick cut with little burr.

Made for angle grinders and for cutting steel, stainless steel, cast iron and sheet metal, such as angle iron, steel studs and rebar. Wear eye and face protection, and mount the disc only on a compatible 4-1/2 in angle grinder whose speed does not exceed the disc’s maximum rpm. Follow the maker’s safety guide for bonded abrasive wheels.

Features

• Type 1 flat disc for metal cutting
• Thin 1 mm (0.040 in) kerf for a narrow cut
• Aluminum oxide abrasive blend
• Reinforced for hand-held cut-off work (per the maker)
• Maximum speed 13,280 rpm (maker page for the US twin item)

Specifications

Part numbers

Documents

• Manufacturer data sheet
