Description

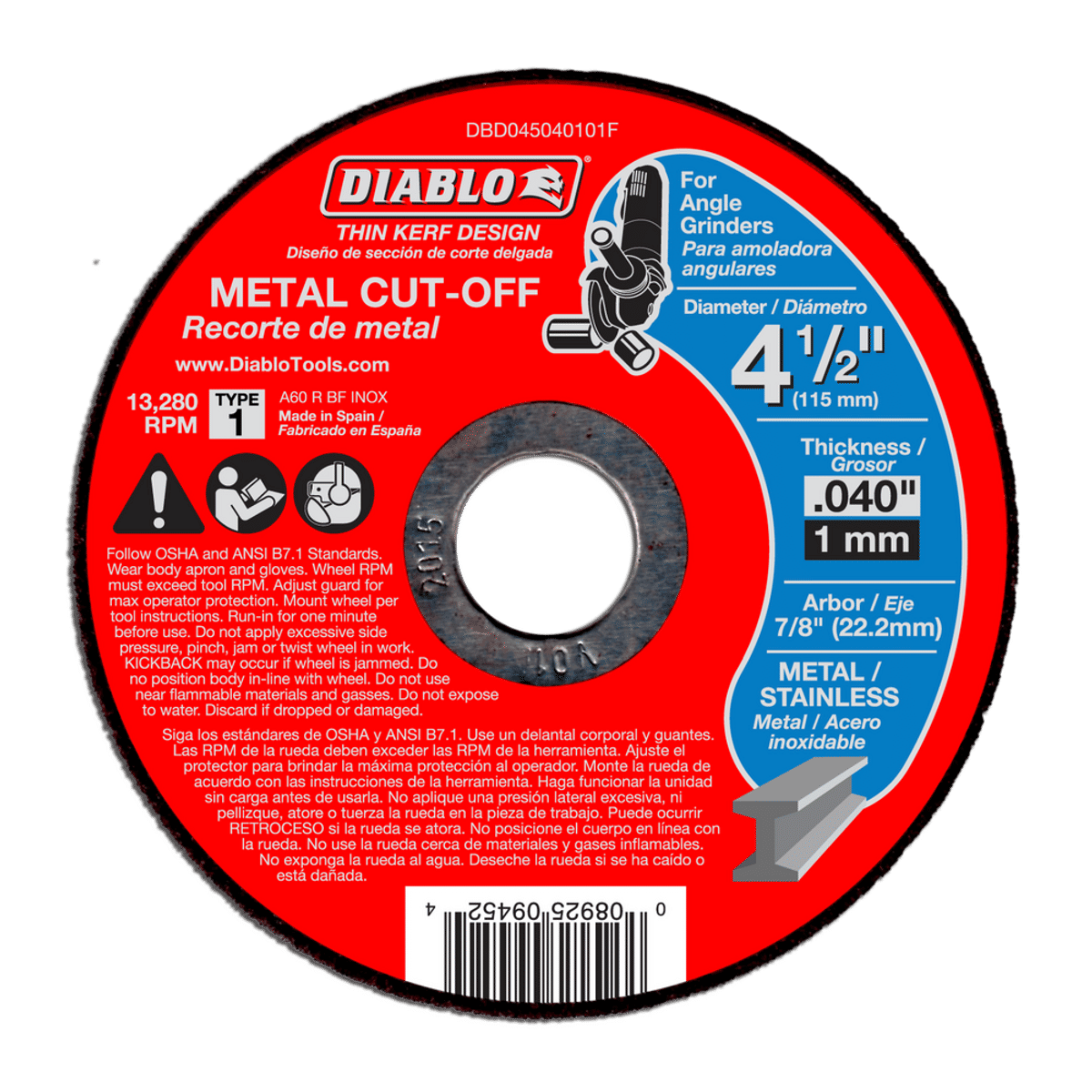

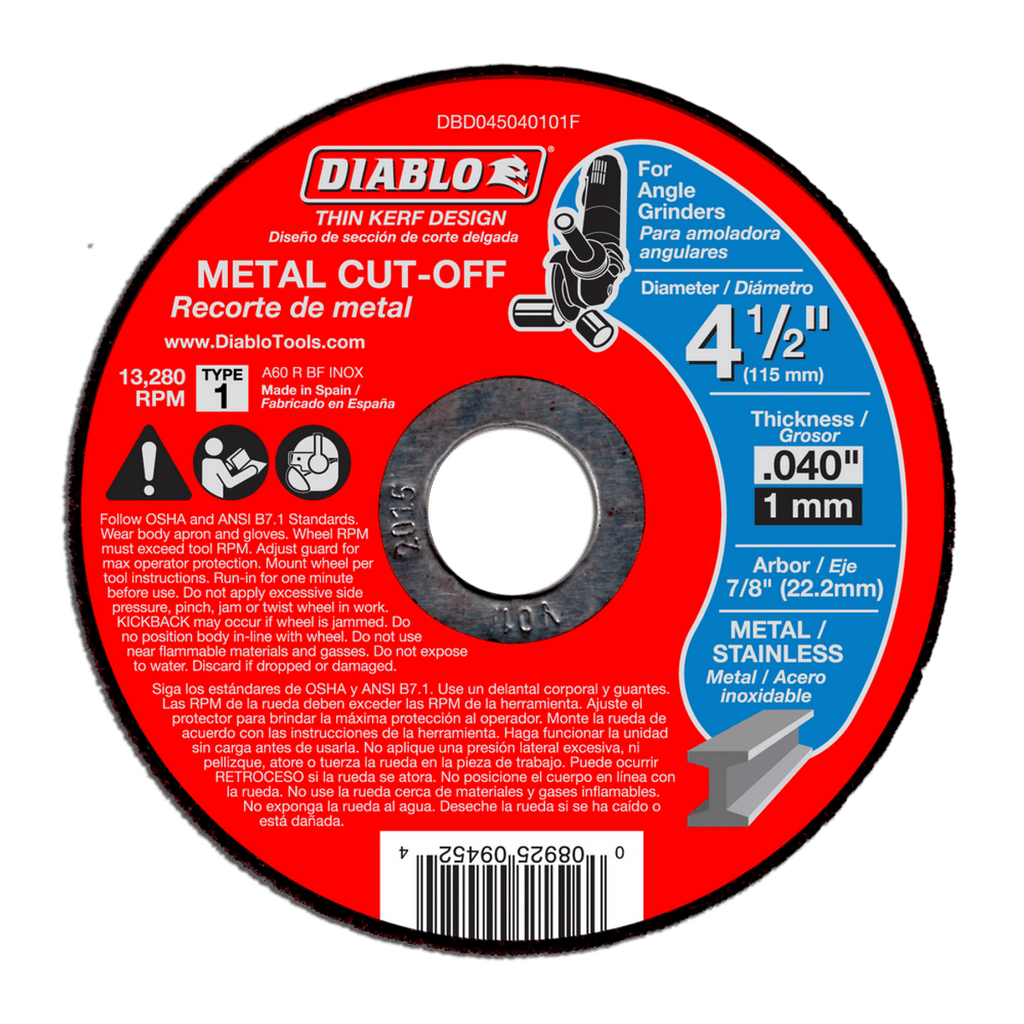

Pack of 15 Diablo type 1 (flat) cut-off discs, each 4-1/2 in (115 mm) in diameter, 0.040 in (1 mm) thick, with a 7/8 in (22.2 mm) arbor hole. The bonded discs use an aluminum oxide abrasive blend, and the thin profile is intended for a narrow, quick cut with little burr.
A practical multi-disc pack for workshops cutting steel, stainless steel, cast iron and sheet metal with angle grinders. Wear eye and face protection, and mount the disc only on a compatible 4-1/2 in angle grinder whose speed does not exceed the disc’s maximum rpm. Follow the maker’s safety guide for bonded abrasive wheels.
Features
- Pack of 15 type 1 flat discs
- Thin 1 mm (0.040 in) kerf for a narrow cut
- Aluminum oxide abrasive blend
- Reinforced for hand-held cut-off work (per the maker)
- Maximum speed 13,280 rpm (maker page for the US twin item)
Specifications
| Specification | Value |
|---|---|
| Model | CDD045040115F |
| Type | 1 (flat) |
| Diameter | 115 mm (4-1/2 in) |
| Thickness | 1 mm (0.040 in) |
| Arbor | 22.2 mm (7/8 in) |
| Abrasive | aluminum oxide blend |
| Maximum speed | 13,280 rpm |
| Quantity | 15 discs |
| Weight | approx. 0.7 kg (packed, estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| CDD045040115F | BP-HW-DBL-CDD045040115F |
