Description

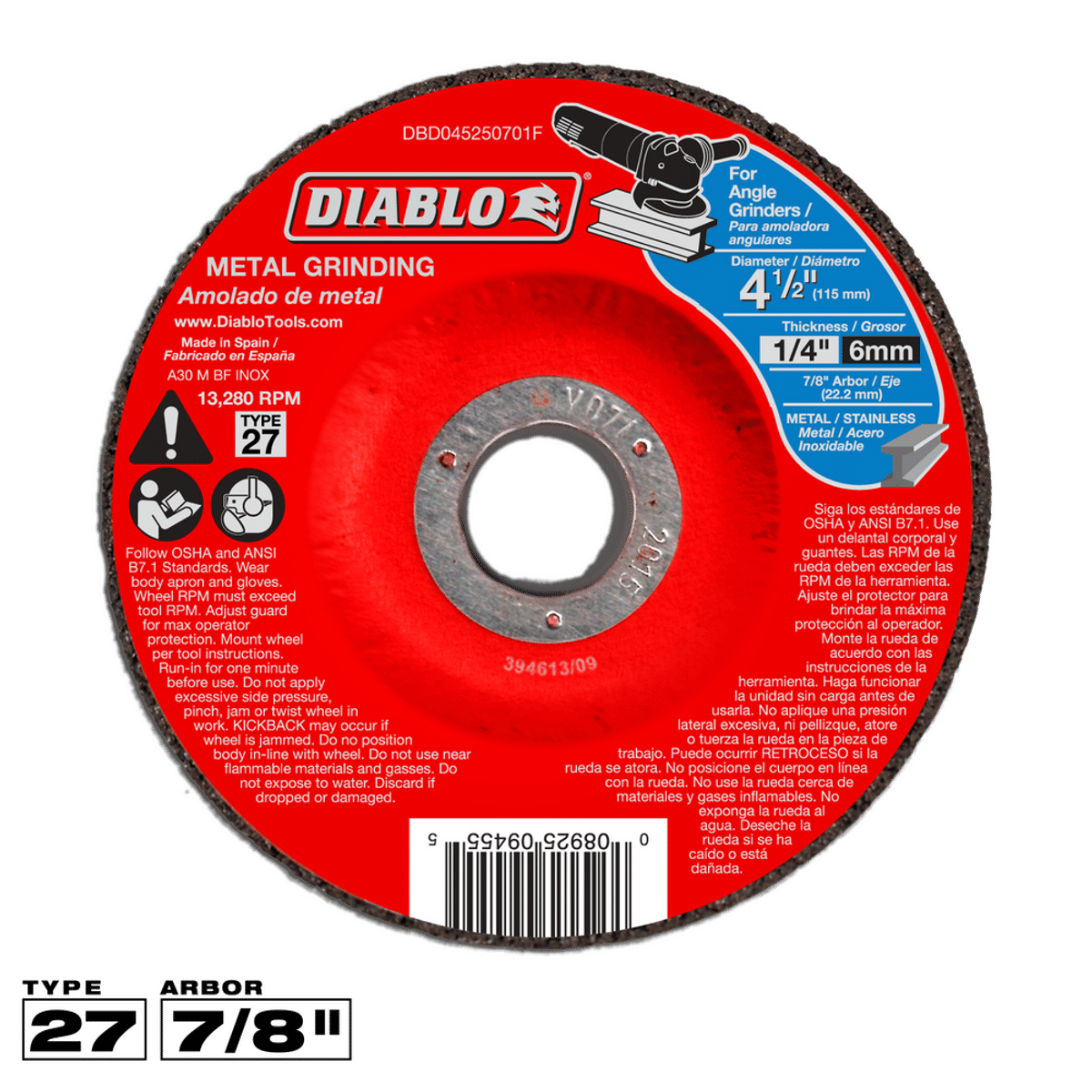

Single Diablo type 27 (depressed-center) grinding disc, 4-1/2 in (115 mm) in diameter, 1/4 in (6.4 mm) thick, with a 7/8 in (22.2 mm) arbor hole. The bonded disc uses an aluminum oxide abrasive blend for removing material and smoothing metal, such as cleaning up welds.
Intended for angle grinders on steel, stainless steel, cast iron and sheet metal. The maker also describes it as reinforced for hand-held cut-off work and suited to hard-to-reach areas. Wear eye and face protection, and mount the disc only on a compatible 4-1/2 in angle grinder whose speed does not exceed the disc’s maximum rpm. Follow the maker’s safety guide for bonded abrasive wheels.
Features
- Type 27 depressed-center disc for metal grinding
- Aluminum oxide abrasive blend
- 1/4 in (6.4 mm) thickness
- Reinforced for hand-held work (per the maker)
- Maximum speed 13,280 rpm (maker page for the US twin item)
Specifications
| Specification | Value |
|---|---|
| Model | CDD045250701F |
| Type | 27 (depressed center) |
| Diameter | 115 mm (4-1/2 in) |
| Thickness | 6.4 mm (1/4 in) |
| Arbor | 22.2 mm (7/8 in) |
| Abrasive | aluminum oxide blend |
| Maximum speed | 13,280 rpm |
| Quantity | 1 disc |
| Weight | approx. 0.17 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| CDD045250701F | BP-HW-DBL-CDD045250701F |
