Description

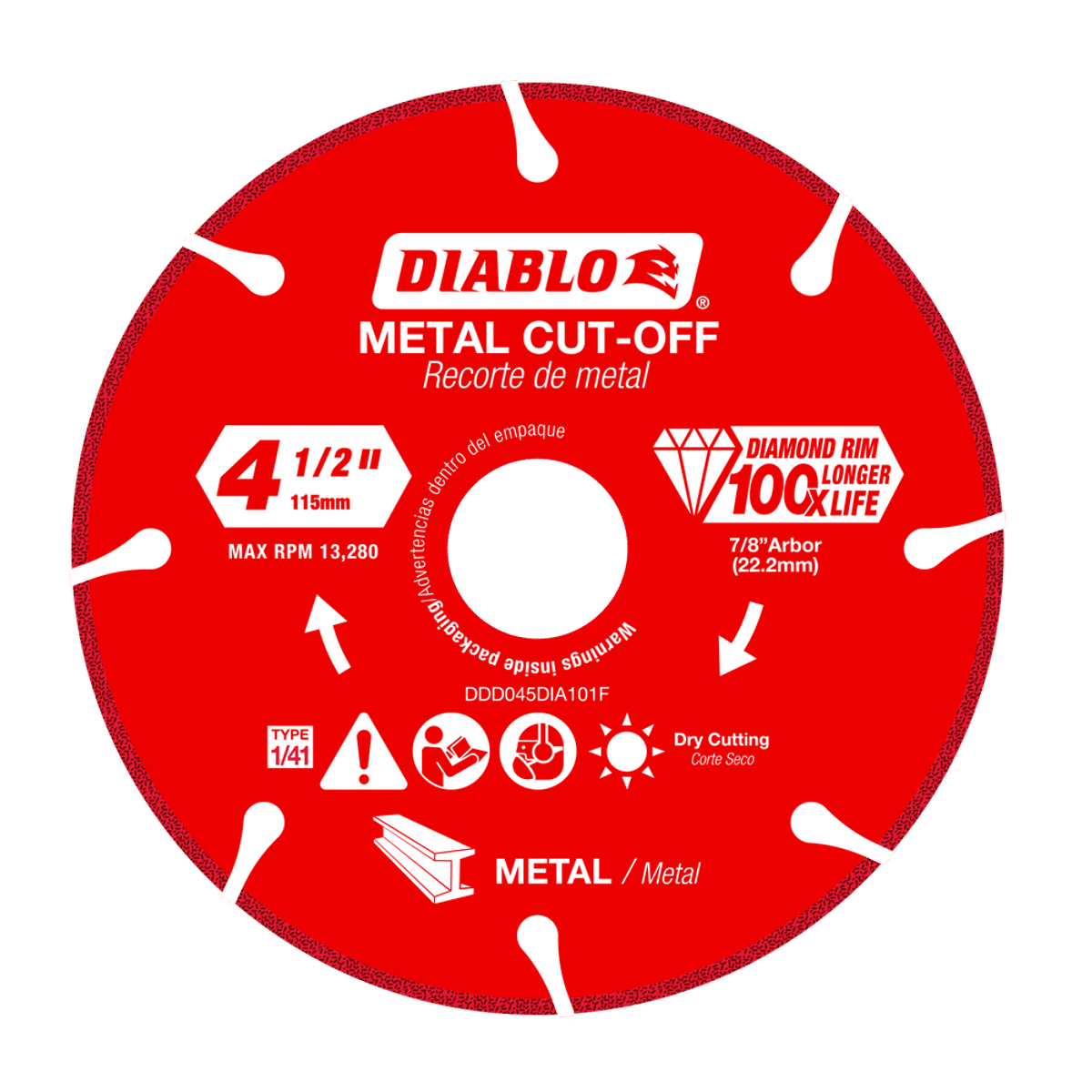

Single Diablo type 1 diamond-rimmed cut-off wheel, 4-1/2 in (115 mm) in diameter, with a 7/8 in (22.2 mm) arbor hole and a segmented diamond rim made by an electro-plating process. It is made for metal cutting with an angle grinder.
The maker lists applications such as rebar, angle iron, cast iron, steel bar, steel tube and studs, strut, threaded rod and conduit. Do not use it on other materials unless the maker says so. Wear eye and face protection, and mount the disc only on a compatible 4-1/2 in angle grinder whose speed does not exceed the disc’s maximum rpm. Follow the maker’s instructions for the wheel.
Features
- Type 1 flat wheel with segmented diamond rim
- Electro-plated diamond abrasive, evenly distributed (per the maker)
- Maintains cutting diameter for consistent cuts (per the maker)
- For metal cutting with angle grinders
- Maximum speed 13,280 rpm
Specifications
| Specification | Value |
|---|---|
| Model | CDD045DIA101F |
| Type | 1 (flat) |
| Diameter | 115 mm (4-1/2 in) |
| Arbor | 22.2 mm (7/8 in) |
| Abrasive | diamond, electro-plated |
| Rim | segmented |
| Maximum speed | 13,280 rpm |
| Quantity | 1 wheel |
| Weight | approx. 0.12 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| CDD045DIA101F | BP-HW-DBL-CDD045DIA101F |
