Description

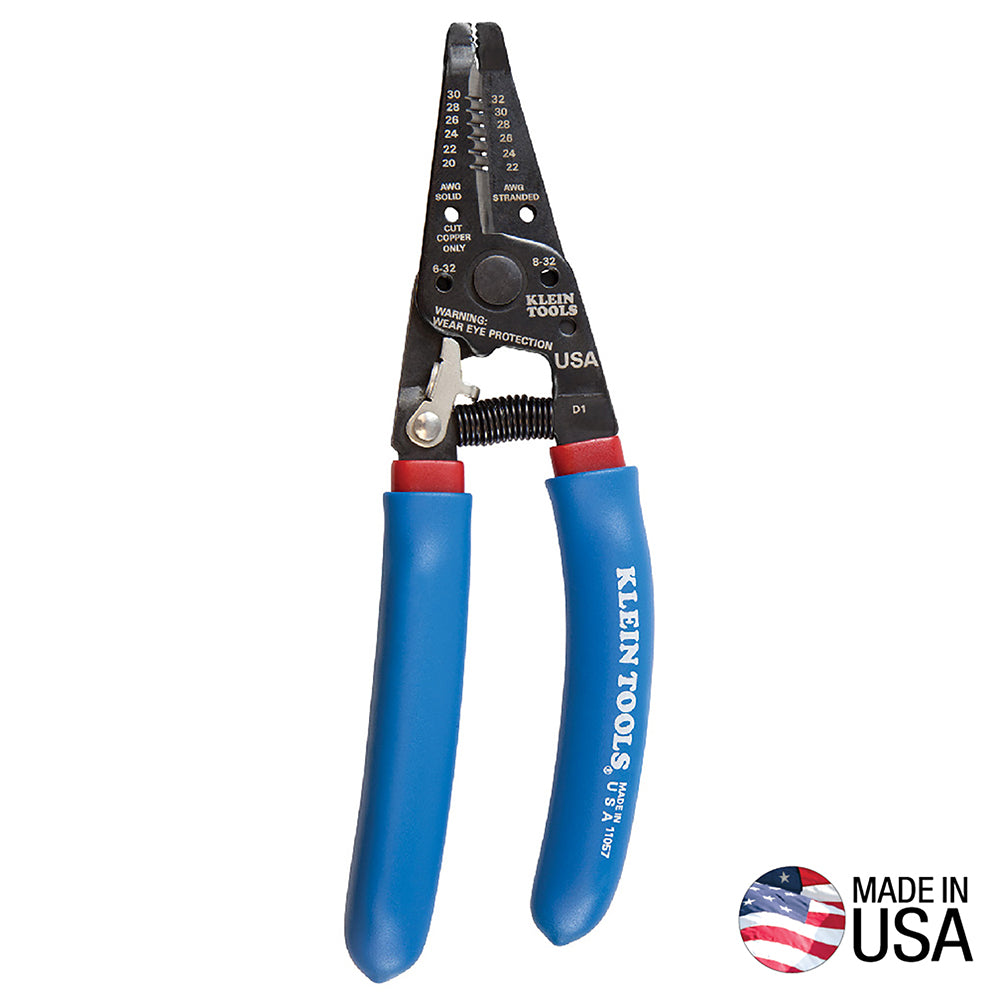

The Klein Tools 11057 Klein-Kurve is a small wire stripper and cutter for fine gauges. It cuts, strips and loops 20-30 AWG solid and 22-32 AWG stranded wire, the range found in electronics, control wiring and small appliance repair.
Its serrated nose grips, bends and pulls wire, and the jaws also shear 6-32 and 8-32 screws. A coil spring opens the handles and a closure lock keeps the tool shut for storage. It is not insulated: never use it on or near live circuits.
Features
- Cuts, strips and loops 20-30 AWG solid and 22-32 AWG stranded
- Precision-ground stripping holes with easy-to-read markings
- Serrated nose to bend, shape and pull wire
- Shearing holes for 6-32 and 8-32 screws
- Coil spring opening and closure lock for storage
Specifications
| Specification | Value |
|---|---|
| Model | 11057 |
| Quantity | 1 wire stripper/cutter |
| Strips and cuts | 20-30 AWG solid, 22-32 AWG stranded |
| Screw shearing | 6-32, 8-32 |
| Handles | Double dipped, blue/red |
| Overall length | 7.5 in (19.1 cm) |
| Insulated | No |
| Material | Steel |
| Weight (tool, manufacturer) | 145 g |
| Weight | approx. 0.2 kg (estimate) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 11057 | BP-HW-KLN-11057 |
