Description

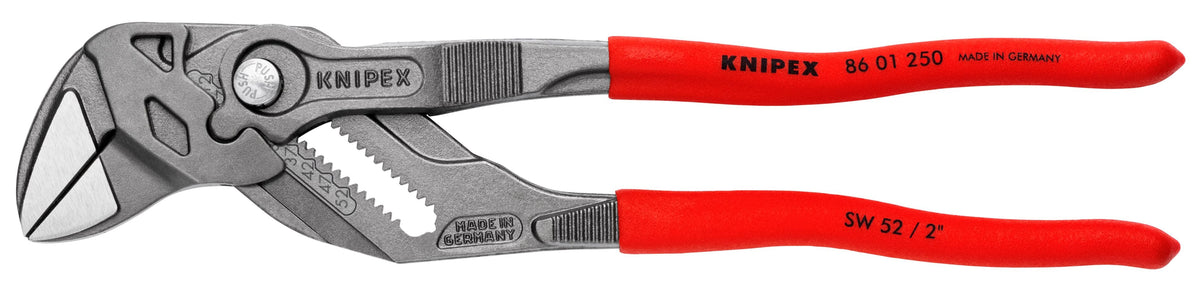

The Knipex 86 01 250 is a 10 in pliers wrench with smooth parallel jaws. The manufacturer states it replaces a full set of inch and metric open-end wrenches up to 2 in (52 mm), and that its smooth jaws allow damage-free installation of plated fittings, working directly on chrome.
It has 19 adjustment positions set at the touch of a button directly on the workpiece, plus a laser-etched scale with metric and inch markings to preset the opening before gripping. Per the manufacturer, zero-backlash jaw pressure protects the edges of sensitive components and the ratchet action tightens and releases bolted connections quickly. Chrome vanadium electric steel, forged and oil-hardened. Sold as a single tool.
Features
- Replaces a full set of inch and metric open-end wrenches up to 2 in (52 mm), per the manufacturer
- Smooth jaws for damage-free work on plated fittings, directly on chrome
- Zero-backlash jaw pressure protects edges of sensitive components
- Parallel jaws, infinitely variable over all widths up to the maximum size
- 19 adjustment positions at the touch of a button
- Laser-etched scale with metric and inch markings
- Ratchet action for fast tightening and release of bolted connections
- Chrome vanadium electric steel, forged and oil-hardened
Specifications
| Specification | Value |
|---|---|
| Model | 86 01 250 |
| Quantity | 1 piece |
| Type | pliers wrench, smooth jaws |
| Length | 10 in |
| Max jaw opening (hex / working capacity) | 2 in (52 mm) |
| Adjustment positions | 19 |
| Jaw length | 1-15/64 in |
| Jaw thickness | 21/64 in |
| Tip thickness | 5/16 in |
| Gripping surface | smooth |
| Handle | non-slip plastic |
| Material | chrome vanadium electric steel, forged, oil-hardened |
| Country of origin | Germany |
| Weight | 0.458 kg (1.01 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 86-01-250 | BP-G-KNI-8601250 |
