Description

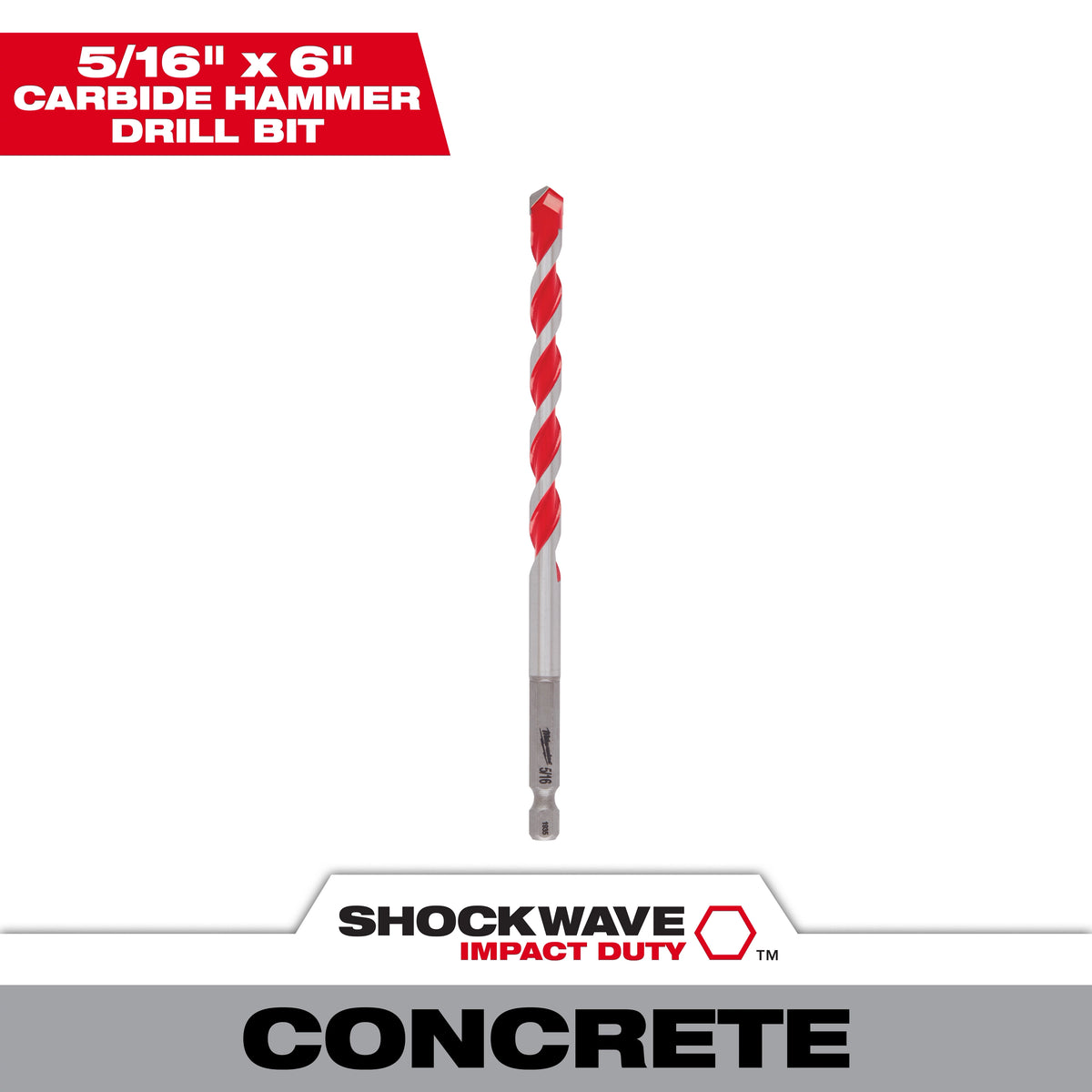

The Milwaukee 48-20-9016 is a SHOCKWAVE Impact Duty carbide hammer drill bit, 5/16 in in diameter and 6 in long, with a 4 in usable length. The manufacturer states it is made for drilling concrete, brick and block, with both impact drivers and hammer drills/drivers.
Per the manufacturer, it has a sharpened, precision-ground carbide tip for faster starts and less bit walking, a wide flute design for dust removal, and a 1/4 in hex shank. Sold as a single bit.
Features
- 5/16 in diameter, 6 in overall length, 4 in usable length
- For concrete, brick and block, per the manufacturer
- Engineered for impact drivers and hammer drills/drivers, per the manufacturer
- Sharpened, precision-ground carbide tip for faster starts and less walking, per the manufacturer
- Wide flute design for dust removal
- 1/4 in hex shank
Specifications
| Specification | Value |
|---|---|
| Model | 48-20-9016 |
| Quantity | 1 piece |
| Type | carbide hammer drill bit (percussion) |
| Diameter | 5/16 in |
| Overall length | 6 in |
| Usable length / drilling depth | 4 in |
| Flute length | 4 in |
| Shank | 1/4 in hex, 1.5 in long |
| Material application | block, brick, concrete |
| Weight | 0.09 lb (0.041 kg) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 48-20-9016 | BP-G-MWK-48209016 |
