Description

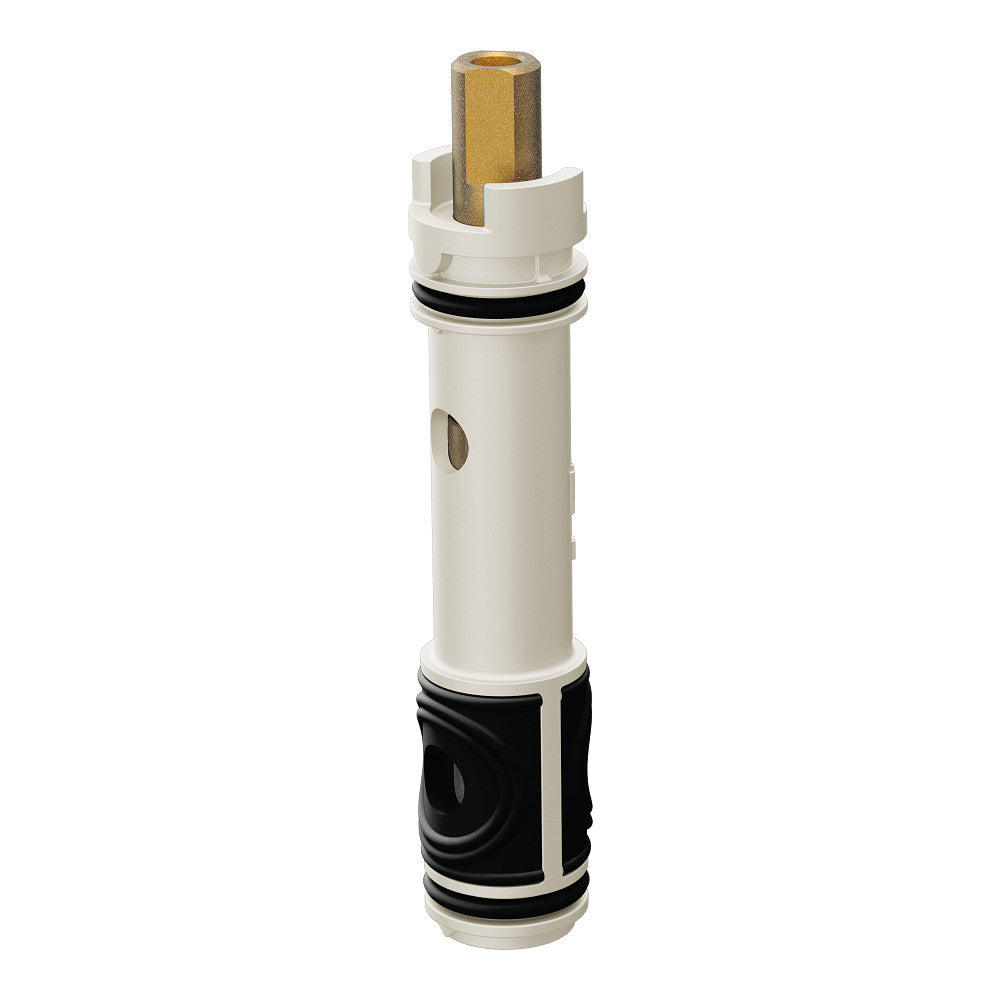

The Moen 1225 is a single-handle replacement cartridge with a brass stem. Moen lists it for many of its single-handle kitchen faucets, bathroom faucets and push/pull single-handle shower valves. In its push/pull shower valves, Moen describes it as controlling on/off, volume and temperature.
Match it to the cartridge you are replacing before ordering: Moen notes that some faucets made after 2009 use a 1255 instead. Moen also states the 1225 is sold without a retainer clip and stem washer, so keep the clip from the old cartridge. Sold as a single cartridge.
Features
- Single-handle replacement cartridge
- Listed by Moen for single-handle kitchen, bathroom and push/pull shower valves
- Brass stem
- Retainer clip and stem washer not included, per Moen
- Moen instruction sheet available for removal and installation
Specifications
| Specification | Value |
|---|---|
| Model | 1225 |
| Quantity | 1 piece |
| Type | Single-handle replacement cartridge |
| Application | single-handle kitchen, bathroom and push/pull shower valves |
| Stem | brass |
| Retainer | U-shaped copper clip (not included) |
| Stem washer | not included |
| Installation sheet | Moen INS744F |
| Weight | approx. 0.08 kg (estimate) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 1225 | BP-HW-MOE-1225 |
