Description

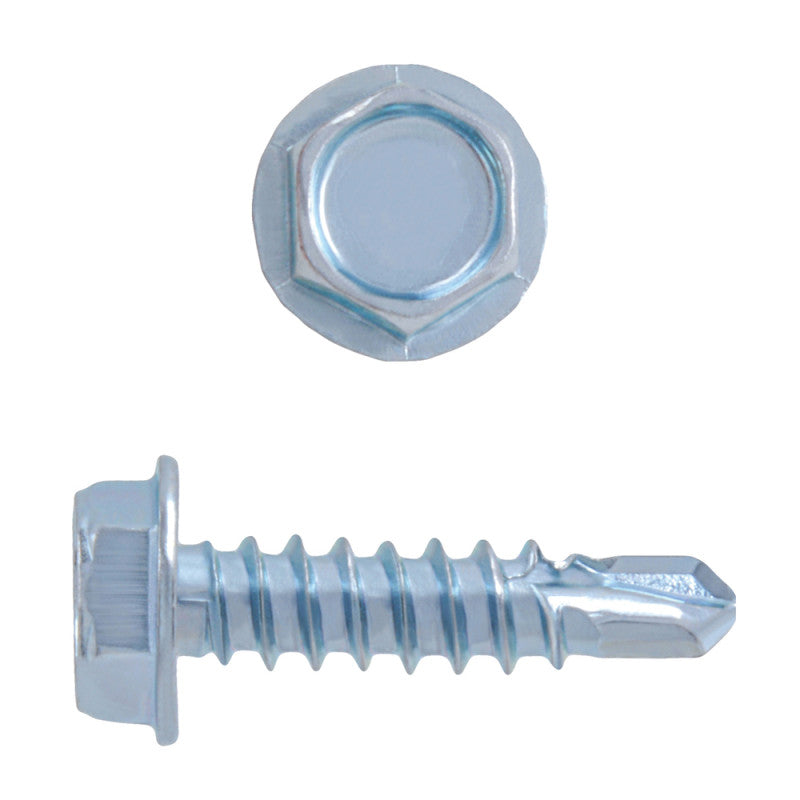

Zinc-plated steel self-drilling screws with a hex washer head, for fastening thin-gauge steel, and also usable in plastics, composites, wood and laminates. The drill point removes the need for a pilot hole.
Pack of 100 screws, #8 x 3/4 in (about 4.2 x 19 mm). Drive with a hex socket driver; the built-in washer spreads the load under the head. Common applications include HVAC, metal fabrication and general assembly.
Features
- Drill point, no pilot hole required
- Hex washer head with built-in washer
- Zinc coating applied to the steel
- Heat-treated steel screw
- Pack of 100
Specifications
| Specification | Value |
|---|---|
| Brand | Paulin (Hillman Group) |
| Model | 232-573 |
| Type | Self-drilling screw (Drill-X) |
| Head | Hex washer |
| Drive | External hex |
| Material | Heat-treated steel |
| Finish | Zinc plated |
| Size | #8 x 3/4 in (approx. 4.2 x 19 mm) |
| Thread | Fully threaded |
| Pack quantity | 100 |
| Shipping weight | approx. 0.28 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 232-573 | BP-HW-PAU-232573 |
