Description

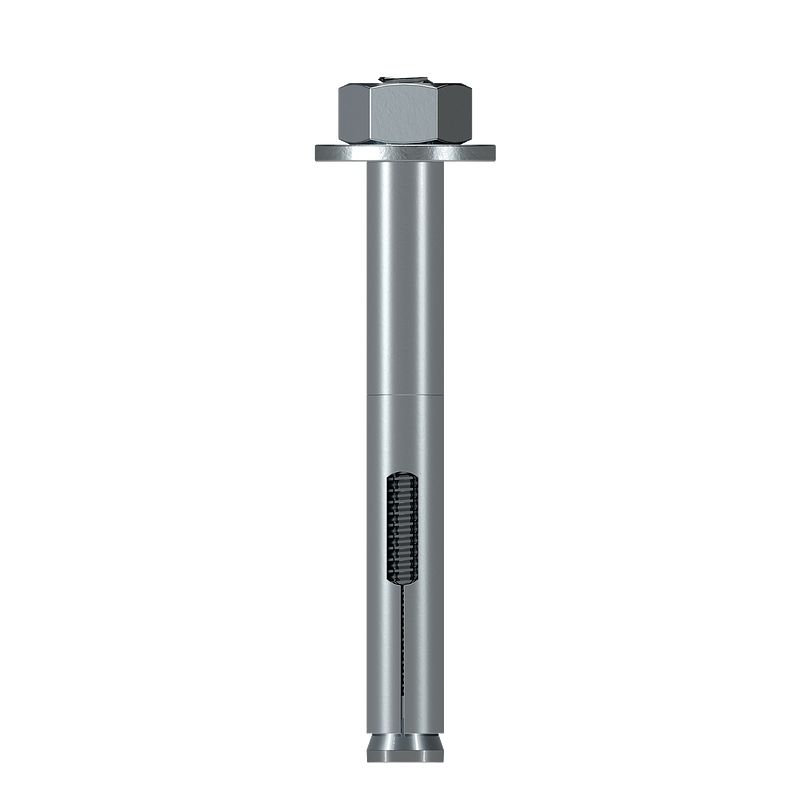

Single Simpson Strong-Tie Sleeve-All SL37300H sleeve anchor, 3/8 x 3 in (9.5 x 76 mm), with a hex-head head, in zinc-plated carbon steel. The maker supplies it pre-assembled and sells this model in boxes of 50; here it is sold by the piece.
It is a one-piece expanding sleeve anchor that the maker recommends for solid base materials such as concrete, brick and block, for example to secure door frames, brackets, rails and light fixtures. Drill a 3/8 in (9.5 mm) hole with a carbide bit, clean it, drive the anchor through the fixture and tighten; the maker gives 15 ft-lbf (20.3 N·m) as the installation torque in concrete. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Pre-assembled expanding sleeve anchor
- Zinc-plated carbon steel
- Hex head tightened with a standard wrench
- Hole drilled with a standard 3/8 in (9.5 mm) carbide bit
- For solid base materials such as concrete, brick and block (per the maker)
Specifications
| Specification | Value |
|---|---|
| Model | SL37300H |
| Quantity | 1 anchor (sold singly) |
| Type | Sleeve anchor, pre-assembled |
| Head | Hex Head |
| Diameter x length | 9.5 x 76 mm (3/8 x 3 in) |
| Material | Zinc-plated carbon steel |
| Bolt diameter | 5/16 in (7.9 mm) |
| Drill bit | 3/8 in (9.5 mm) carbide |
| Wrench size | 1/2 in (13 mm) |
| Threads per inch | 18 |
| Max. fixture thickness | 1-1/2 in (38 mm) |
| Installation torque in concrete | 15 ft-lbf (20.3 N·m) |
| Maker pack | 50 per box, 200 per carton |
| Weight | approx. 0.025 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| SL37300H | BP-G-SIM-SL37300H |
