Description

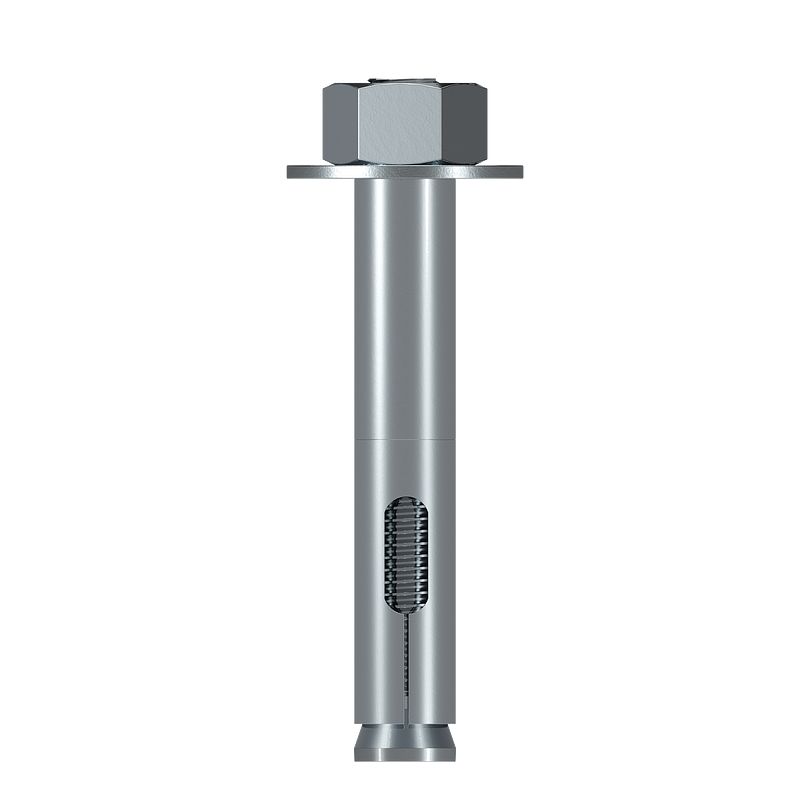

Single Simpson Strong-Tie Sleeve-All SL75414H sleeve anchor, 3/4 x 4-1/4 in (19.1 x 108 mm), with a hex-head head, in zinc-plated carbon steel. The maker supplies it pre-assembled and sells this model in boxes of 10; here it is sold by the piece.
It is a one-piece expanding sleeve anchor that the maker recommends for solid base materials such as concrete, brick and block, for example to secure door frames, brackets, rails and light fixtures. Drill a 3/4 in (19.1 mm) hole with a carbide bit, clean it, drive the anchor through the fixture and tighten; the maker gives 90 ft-lbf (122 N·m) as the installation torque in concrete. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Pre-assembled expanding sleeve anchor
- Zinc-plated carbon steel
- Hex head tightened with a standard wrench
- Hole drilled with a standard 3/4 in (19.1 mm) carbide bit
- For solid base materials such as concrete, brick and block (per the maker)
Specifications
| Specification | Value |
|---|---|
| Model | SL75414H |
| Quantity | 1 anchor (sold singly) |
| Type | Sleeve anchor, pre-assembled |
| Head | Hex Head |
| Diameter x length | 19.1 x 108 mm (3/4 x 4-1/4 in) |
| Material | Zinc-plated carbon steel |
| Bolt diameter | 5/8 in (15.9 mm) |
| Drill bit | 3/4 in (19.1 mm) carbide |
| Wrench size | 15/16 in (24 mm) |
| Threads per inch | 11 |
| Max. fixture thickness | 7/8 in (22 mm) |
| Installation torque in concrete | 90 ft-lbf (122 N·m) |
| Maker pack | 10 per box, 40 per carton |
| Weight | approx. 0.125 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| SL75414H | BP-G-SIM-SL75414H |
