Description

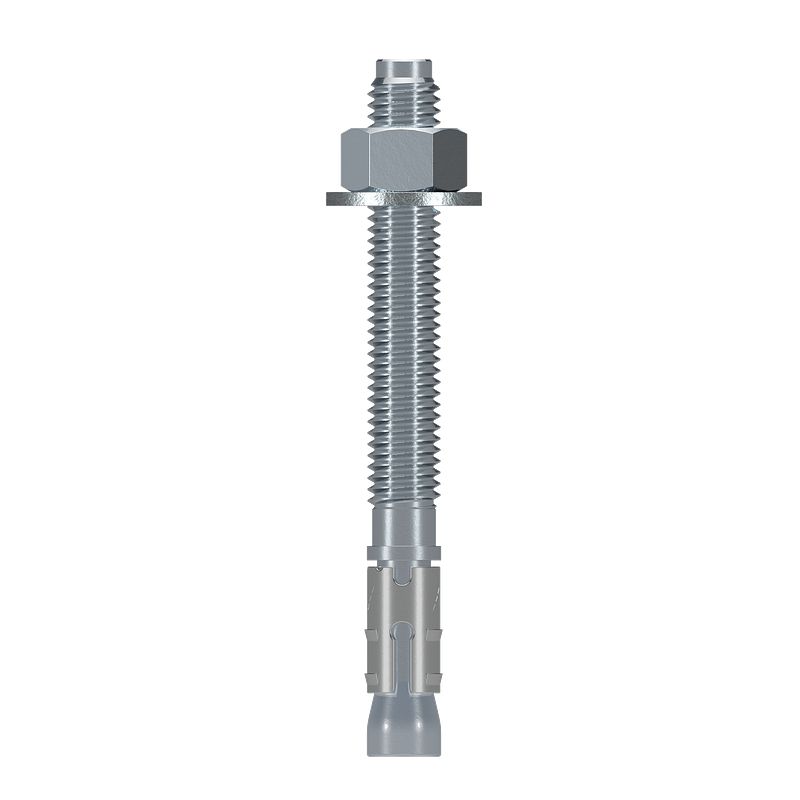

Single Simpson Strong-Tie STB2-50234 Strong-Bolt 2 wedge anchor, 1/2 x 2-3/4 in (12.7 x 70 mm), sold individually (per piece). It is a zinc-plated carbon steel stud supplied assembled with a nut and washer, with a chamfered top that helps prevent mushrooming when the anchor is driven into the hole.
Meant for fastening plates, brackets, rails, pipe supports and equipment bases to concrete. Drill a 1/2 in (12.7 mm) hole with a carbide bit, clean it, drive the anchor and tighten to 60 ft-lbf (81 N·m); do not use an impact wrench. Installation must follow the manufacturer’s instructions and the requirements of your project.
Features
- Wedge-type expansion anchor for concrete
- Supplied assembled with nut and washer
- Zinc-plated carbon steel construction
- Chamfered top to limit mushrooming when driven
- Drilled with a standard 1/2 in (12.7 mm) carbide bit
Specifications
| Specification | Value |
|---|---|
| Model | STB2-50234 |
| Quantity | 1 anchor (sold individually) |
| Type | Wedge-type expansion anchor, supplied assembled with nut and washer |
| Diameter x length | 1/2 x 2-3/4 in (12.7 x 70 mm) |
| Material | Zinc-plated carbon steel |
| Drill bit diameter | 1/2 in (12.7 mm), carbide-tipped |
| Minimum fixture hole | 9/16 in (14 mm) |
| Wrench size | 3/4 in (19 mm) |
| Installation torque | 60 ft-lbf (81 N·m) |
| Weight | approx. 0.1 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| STB2-50234 | BP-G-SIM-STB250234 |
