Description

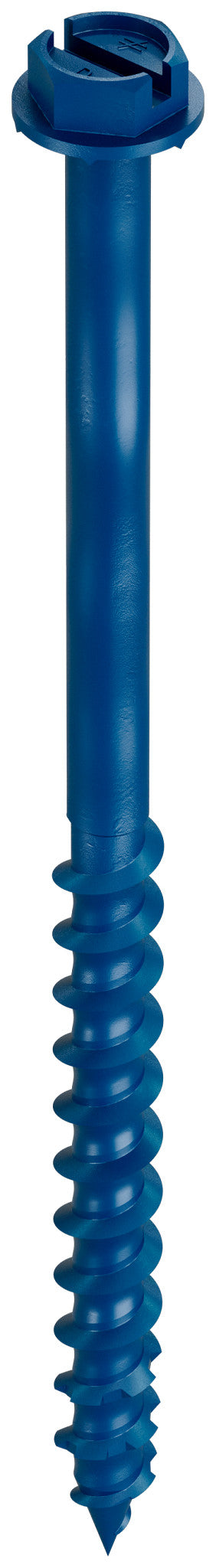

Single Simpson Strong-Tie Titen Turbo TNT18334H screw anchor, 3/16 in (4.8 mm) in diameter and 3-3/4 in (95 mm) long, sold per piece (each), not by the box. It has a hex head, a carbon-steel body with a zinc plating and baked-on ceramic coating, and a blue finish. It is driven into a pre-drilled 5/32 in (4 mm) hole.
Titen Turbo screws are used to fix items such as electrical boxes, conduit, light fixtures, furring strips, shelving, handrails, windows and thresholds to concrete or masonry. The maker states the screw is for dry interior environments only. Installation must follow the manufacturer's instructions and the requirements of your project.
Features
- Torque Reduction Channel that moves drilling dust away from the thread
- Hex head driven with a 1/4 in hex socket
- Serrated leading thread edge and pointed tip
- Standard ANSI carbide drill bit, no matched-tolerance bit needed
- Carbon steel, zinc plated with baked-on ceramic coating
Specifications
| Specification | Value |
|---|---|
| Model | TNT18334H |
| Quantity | 1 screw (sold each) |
| Diameter x length | 4.8 x 95 mm (3/16 x 3-3/4 in) |
| Head / drive | Hex head, 1/4 in hex |
| Material | Carbon steel |
| Finish | Zinc plated with ceramic coating, blue |
| Drill bit diameter | 4 mm (5/32 in) |
| Manufacturer pack | 100 pieces per box, 4 boxes per carton |
| Estimated weight | approx. 0.012 kg |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| TNT18334H | BP-G-SIM-TNT18334H |
