Description

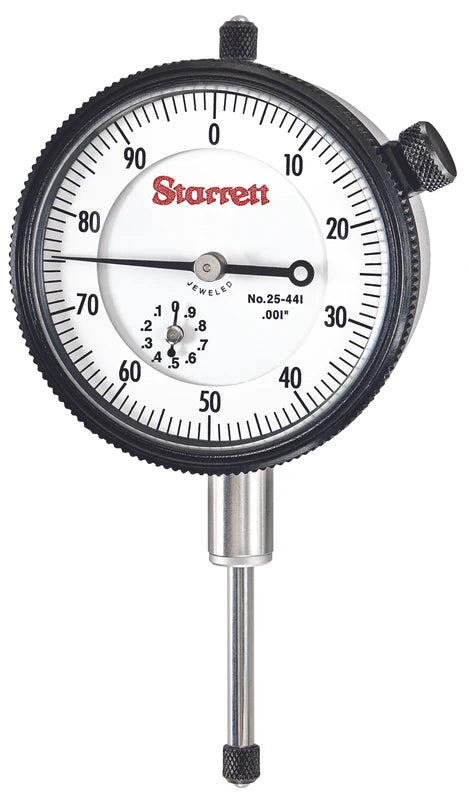

The Starrett 25-441J is a dial indicator with a white dial reading 0-100 in .001 in graduations. Its total range is 1.000 in, with .100 in per revolution of the hand, and the stem diameter is .375 in.
The movement has a steel gear train and jewel bearings. The back is of the lug-on-center type. A bench and workshop instrument, sold as a single indicator.
Features
- Dial indicator, white dial reading 0-100
- .001 in graduations
- Total range 1.000 in, .100 in per revolution
- Stem diameter .375 in
- Steel gear train
- Jewel bearings
- Lug-on-center back
Specifications
| Specification | Value |
|---|---|
| Model | 25-441J |
| Quantity | 1 piece |
| Type | dial indicator |
| Total range | 1.000 in (25.4 mm, converted) |
| Range per revolution | .100 in (2.54 mm, converted) |
| Graduations | .001 in (0.025 mm, converted) |
| Dial reading | 0-100 |
| Dial color | white |
| Stem diameter | .375 in (9.5 mm, converted) |
| Bearings | jewel |
| Back | lug-on-center |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 25-441J | BP-G-STT-25441J |
