Description

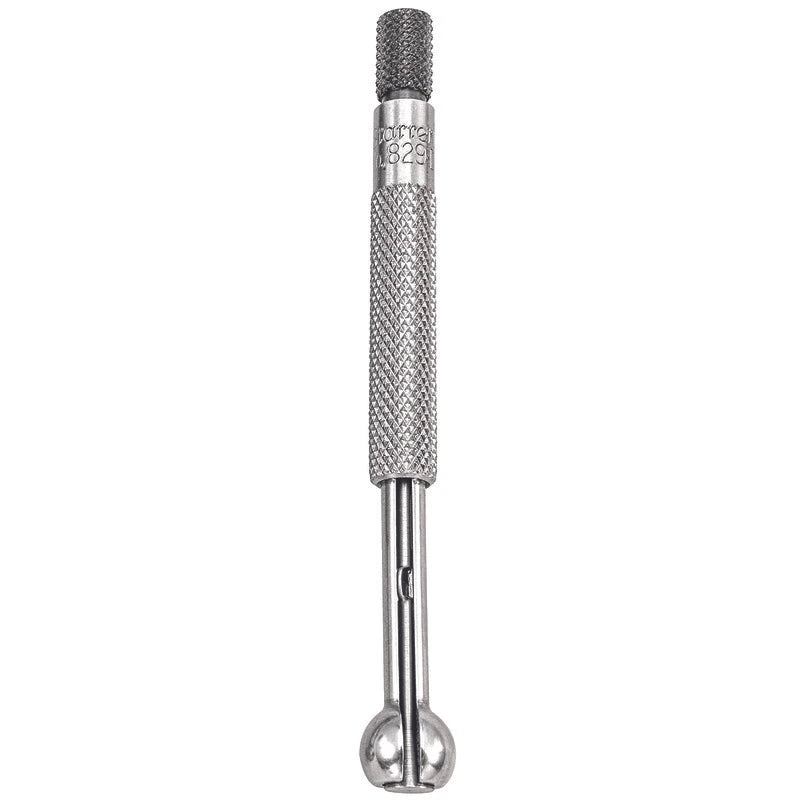

The Starrett 829D is a full-ball small hole gage for general work, with a stated range of .400-.500 in (10.2-12.7 mm) and an overall length of 3-1/2 in (90 mm). It is used to measure small holes, slots, grooves and recesses.
Per the manufacturer, the hardened-ball measuring surface has a precision ground radius that gives two-point contact, adjustment is smooth and sensitive, and a safety stop prevents adjustment beyond the gage’s range. The hole size is transferred to a measuring tool such as a micrometer (not included). Sold as a single gage, not as the S829EZ set.
Features
- Range .400-.500 in (10.2-12.7 mm), length 3-1/2 in (90 mm)
- Full-ball gage for general work
- Hardened-ball measuring surface with two-point contact
- Precision ground radius on each gage, per the manufacturer
- Smooth, sensitive adjustment
- Safety stop restricts adjustment beyond the range
- For small holes, slots, grooves and recesses
Specifications
| Specification | Value |
|---|---|
| Model | 829D |
| Quantity | 1 piece |
| Type | full-ball small hole gage |
| Range | .400-.500 in (10.2-12.7 mm) |
| Length | 3-1/2 in (90 mm) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 829D | BP-G-STT-829D |
