Description

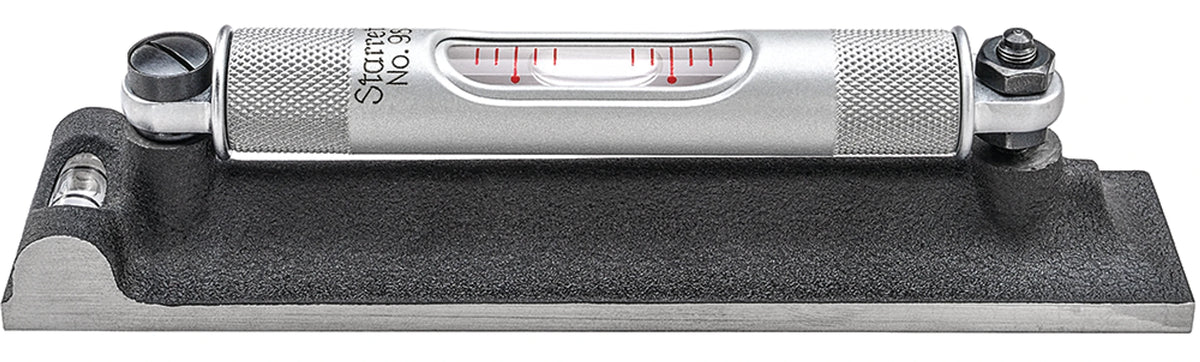

The Starrett 98-6 is a 6 in (150 mm) machinists level with a ground and graduated main vial and a cross test vial. It is sold without a case.
Per the manufacturer, the base has an involute groove running its length to give a reliable seat on round work, and the vials are adjustable to a positive setting and housed in a satin-finished brass tube with a friction-fit closing cover to prevent breakage. The main vial graduations are stated as approximately 80-90 seconds or .005 in per foot (0.42 mm per meter). Sold as a single level.
Features
- Ground and graduated main vial
- Cross test vial
- Involute groove along the base for a reliable seat on round work
- Vials adjustable to a positive setting
- Vials housed in a satin-finished brass tube with friction-fit closing cover
- Main vial graduations approx. 80-90 seconds or .005 in per foot (0.42 mm per meter), per the manufacturer
- Sold without case
Specifications
| Specification | Value |
|---|---|
| Model | 98-6 |
| Quantity | 1 piece |
| Type | machinists level |
| Base length | 6 in (150 mm) |
| Width | 1-3/16 in (29.9 mm) |
| Main vial | ground and graduated |
| Cross test vial | yes |
| Plumb vial | none |
| Case | none |
| Main vial graduations | approx. 80-90 seconds or .005 in per foot (0.42 mm per meter), per the manufacturer |
| Weight | 0.408 kg (0.9 lbs, packed unit, per the manufacturer) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 98-6 | BP-G-STT-986 |
