Description

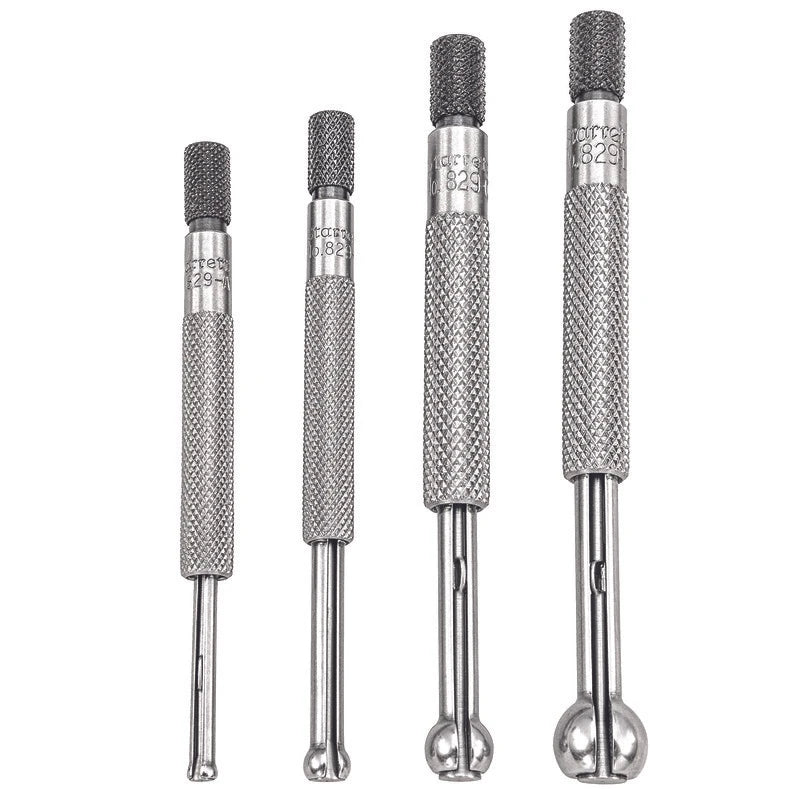

The Starrett S829EZ is a set of four small hole gages with full-ball ends, supplied with a case. The manufacturer gives the set range as .125-.500 in (3.2-12.7 mm) and the gage length as 2-7/8 to 3-1/2 in (75-90 mm).
Per the manufacturer, the gages in the set are full-ball gages used for general work. The set contains one each of four gages, listed as 829A, 829B, 829C and 829D.
Features
- Set of 4 small hole gages
- One each of 829A, 829B, 829C and 829D
- Full-ball gages for general work, per the manufacturer
- Set range .125-.500 in (3.2-12.7 mm)
- Length 2-7/8 to 3-1/2 in (75-90 mm)
- Supplied with a case
Specifications
| Specification | Value |
|---|---|
| Model | S829EZ |
| Quantity | 1 set |
| Type | small hole gage set |
| Number of pieces | 4 |
| Set contents | one each of 829A, 829B, 829C, 829D |
| Range | .125-.500 in (3.2-12.7 mm) |
| Length | 2-7/8 to 3-1/2 in (75-90 mm) |
| Ball type | full ball |
| Case | included |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| S829EZ | BP-G-STT-S829EZ |
