Description

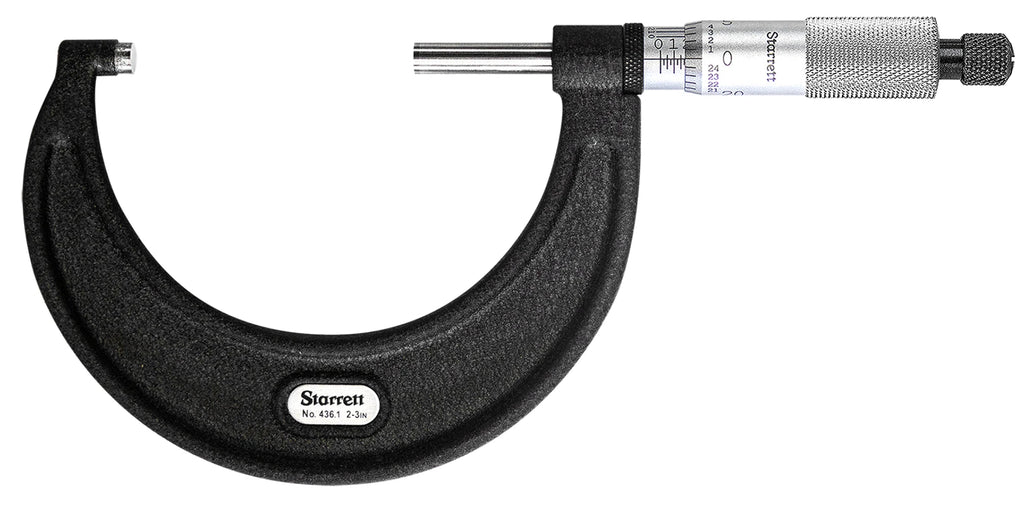

The Starrett T436.1XRL-3 is an outside micrometer with a 2-3 in range (50.8-76.2 mm, converted), for outside dimensions starting at 2 in and ending at 3 in. The manufacturer lists .0001 in graduations, a flat carbide anvil and spindle, a knurled ring-type lock nut and a ratchet thimble.
The frame has a black wrinkle finish and the micrometer is furnished with a plastic storage case. Sold as a single micrometer.
Features
- Outside micrometer, 2-3 in range (50.8-76.2 mm, converted)
- Graduations of .0001 in, as listed by the manufacturer
- Flat carbide anvil and spindle
- Knurled ring-type lock nut
- Ratchet thimble
- Black wrinkle frame finish
- Furnished with a plastic storage case
Specifications
| Specification | Value |
|---|---|
| Model | T436.1XRL-3 |
| Quantity | 1 piece |
| Type | outside micrometer |
| Range | 2-3 in (50.8-76.2 mm, converted) |
| Graduations | .0001 in (0.0025 mm, converted) |
| Anvil and spindle material | carbide |
| Anvil and spindle faces | flat |
| Lock nut | knurled ring type |
| Thimble | ratchet |
| Frame finish | black wrinkle |
| Case | plastic, furnished with the micrometer |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| T436.1XRL-3 | BP-G-STT-T4361XRL3 |
