Description

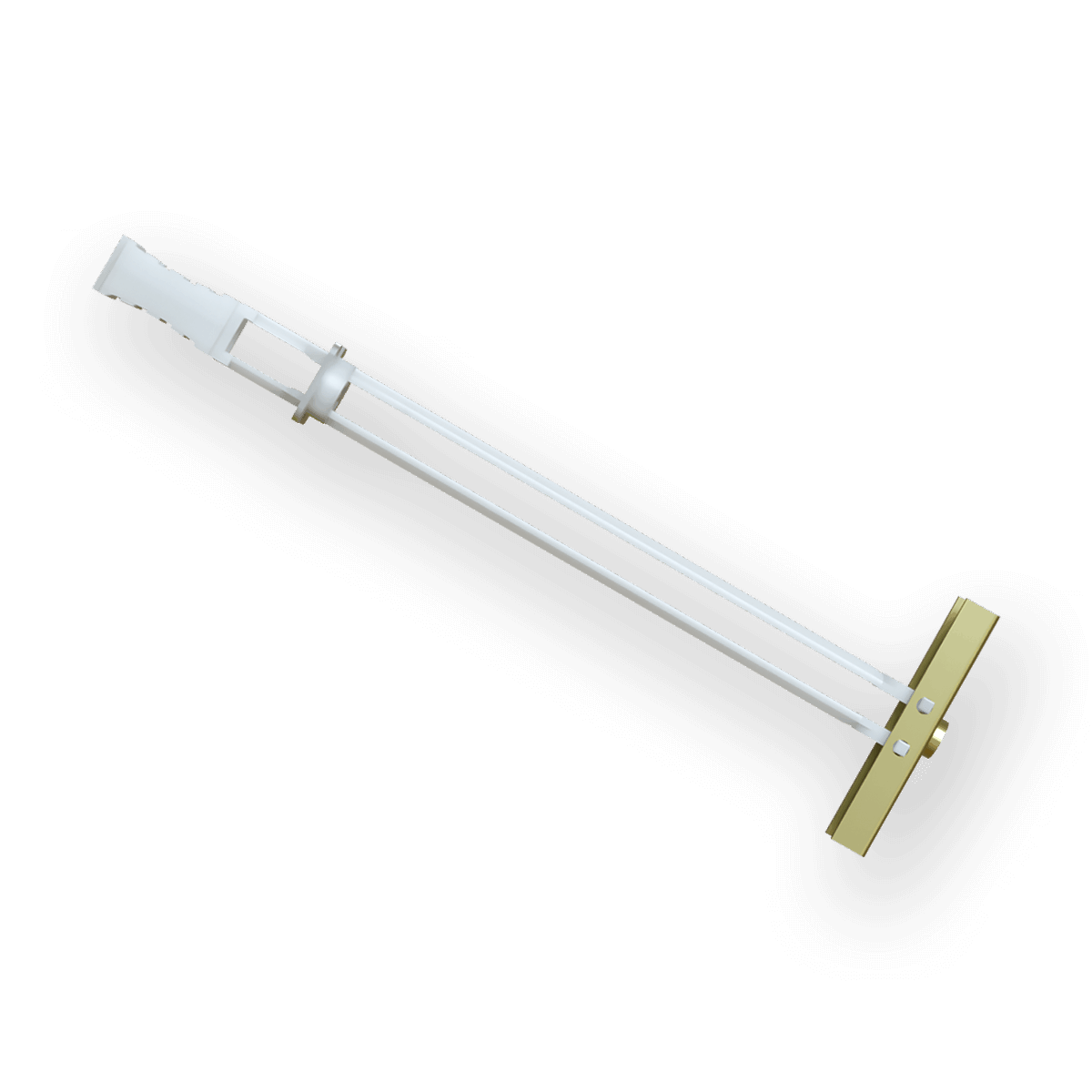

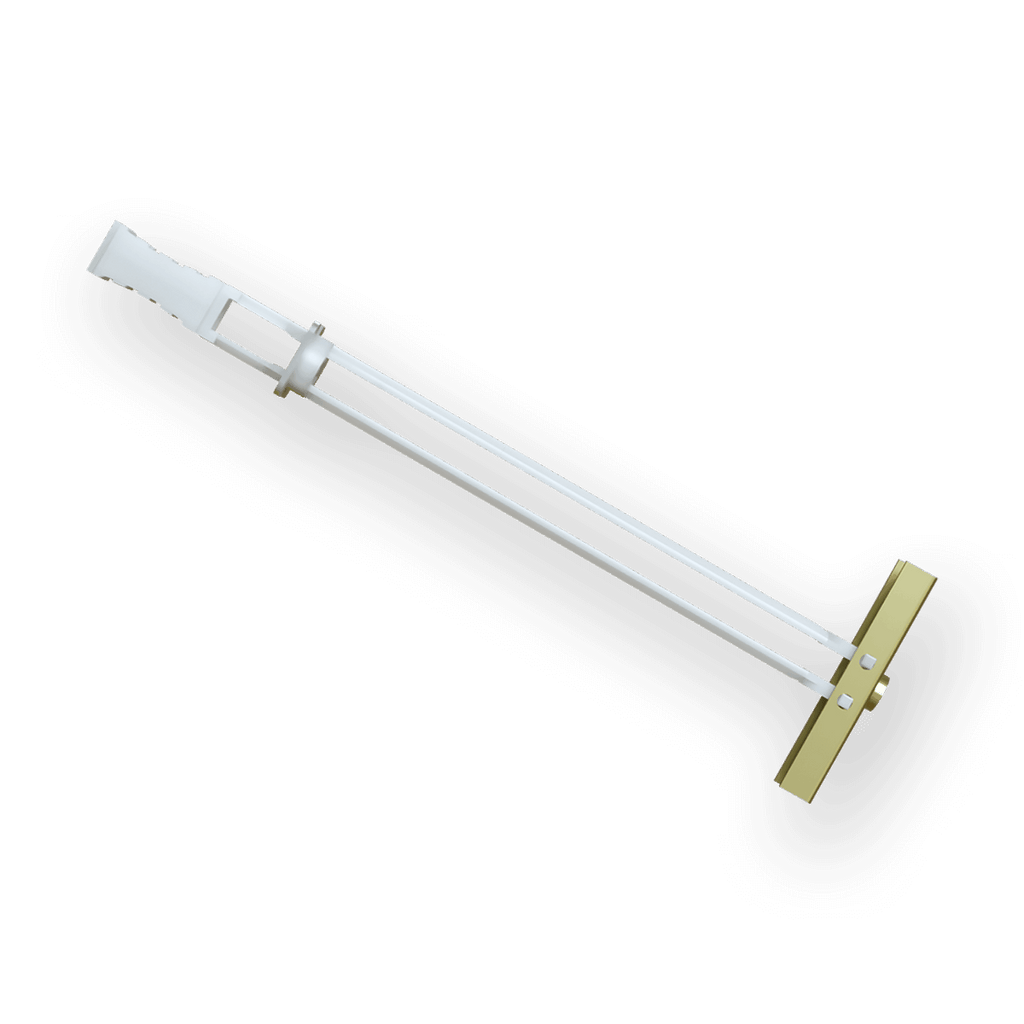

Toggle bolt anchors for fixing heavier items such as shelves, cabinets, handrails, mirrors and TV mounts to hollow or thin walls and ceilings, including drywall, plasterboard, plywood and hollow concrete block. The metal channel is pulled flat against the back of the wall by the plastic straps, then the straps are snapped off flush.
The anchor does not rotate, so it can be installed with a screw gun, and it needs a 1/2 in (12.7 mm) hole. Wall thickness range per the manufacturer is 3/8 to 3-5/8 in, with at least 1-7/8 in free space behind the wall. Pack of 10 anchors. Holding values depend on the base material: per the manufacturer data sheet.
Features
- Non-rotating anchor, can be installed with a screw gun
- Needs only a 1/2 in hole for the 1/4 in size
- Suits drywall, plasterboard, plywood and hollow block
- Straps snap off flush with the cap
- Anchor can be pre-installed without the bolt and reused
Specifications
| Specification | Value |
|---|---|
| Brand | Toggler |
| Type | SnapToggle toggle bolt anchor (BB style) |
| Thread | 1/4-20 |
| Drill hole | 1/2 in (12.7 mm) |
| Wall thickness | 3/8 to 3-5/8 in (about 10 to 92 mm) |
| Channel | Yellow zinc-plated steel |
| Straps | High-impact polystyrene |
| Minimum clearance behind wall | 1-7/8 in (about 48 mm) |
| Pack quantity | 10 |
| Shipping weight | approx. 0.15 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 843-689 | BP-HW-TGL-843689 |
