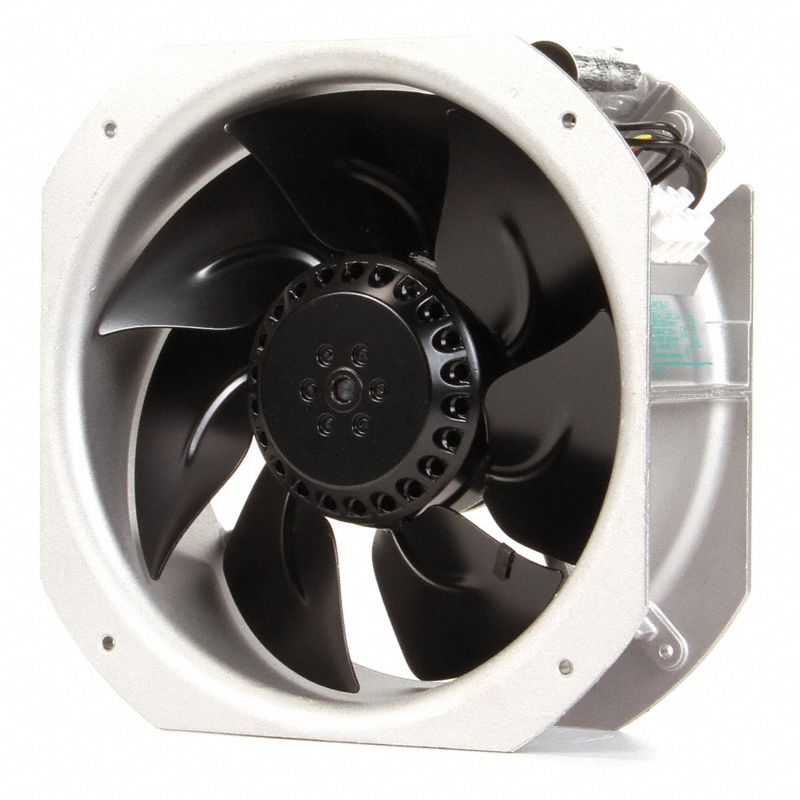

ebm-papst W2E200-HK38-01 square axial fan in cast aluminum, 8 7/8 in x 8 7/8 in x 3 1/8 in, 230 V AC supply, 50/60 Hz, 606 CFM air flow.
Features
- 230 V AC supply, 50/60 Hz, as listed: 0.29/0.35 A and 64/80 W
- Terminal connection: to be hard-wired, no plug or cord listed (not directly suited to local sockets)
- Ball bearings, thermal protection, IP44 protection rating
- Vertical or horizontal mounting
Specifications
| Specification | Value |
|---|
| Brand | ebm-papst |
| Part number | W2E200-HK38-01 |
| Type | Standard square axial fan |
| Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Current | 0.29/0.35 A |
| Power | 64/80 W |
| Air flow at 0 in. static pressure | 606 CFM |
| Speed | 2500/2800 RPM |
| Height | 8 7/8 in |
| Width | 8 7/8 in |
| Depth | 3 1/8 in |
| Mounting hole spacing | 9 7/16 in |
| Electrical connection | Terminals |
| IP rating | IP44 |
| Bearings | Ball |
| Motor insulation class | B |
| Thermal protection | Yes |
| Housing material | Cast aluminum |
| Blade material | Sheet steel |
| Mounting position | Vertical or horizontal |
| Standards (per the manufacturer) | UL and C-UL Recognized, RoHS compliant |
| Sold as | 1 fan |
Reference
| Manufacturer part number (MPN) | Big Papa SKU |
|---|
| W2E200-HK38-01 | BP-W-EBM-W2E200-HK38-01 |
