Description

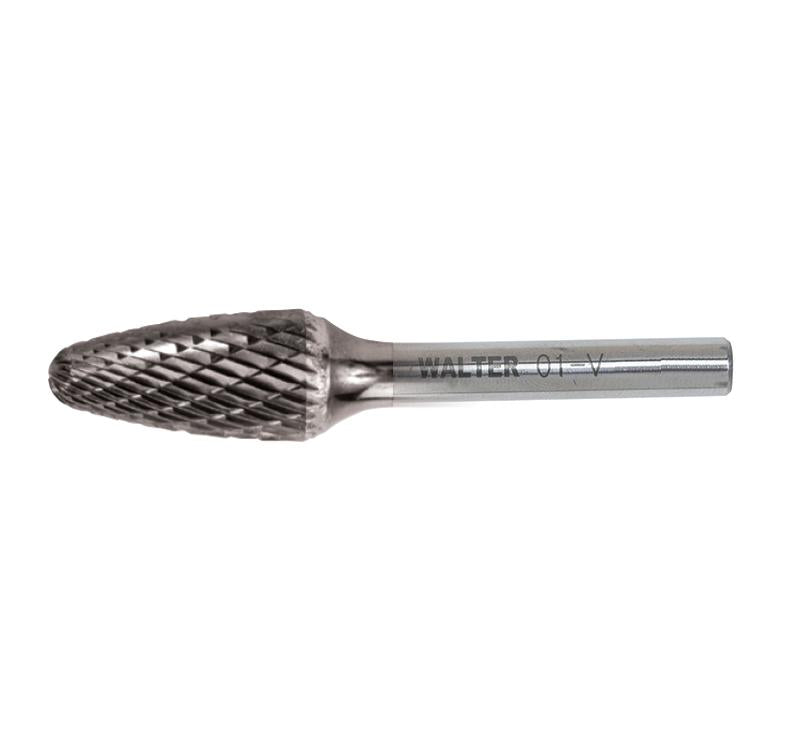

The Walter 01V615 is a carbide burr (rotary file) with a round tree shape and a double cut. Per the manufacturer page: cut diameter 1/2 in, cut length 1 in, shank 1/4 in, shank length 6 in. The page gives tungsten carbide as the material, with a bright finish.
Sold individually; the price covers one burr. Its tool number is printed in the specifications below.
Features
- Carbide burr, round tree shape, double cut
- Cut diameter 1/2 in, cut length 1 in
- 1/4 in shank, shank length 6 in
- Tungsten carbide, bright finish, as printed on the page
- Sold individually
Specifications
| Specification | Value |
|---|---|
| Model | 01V615 |
| Quantity | 1 piece, sold individually |
| Type | carbide burr (rotary file) |
| Shape | round tree |
| Cut type | double cut |
| Cut diameter | 1/2 in (12.7 mm, converted) |
| Cut length | 1 in (25.4 mm, converted) |
| Shank | 1/4 in (6.3 mm, converted) |
| Shank length | 6 in (152.4 mm, converted) |
| Shank material | hardened steel |
| Head material | tungsten carbide |
| Finish | bright |
| Tool no. | SF-5L6 |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 01V615 | BP-G-WAL-01V615 |
