Description

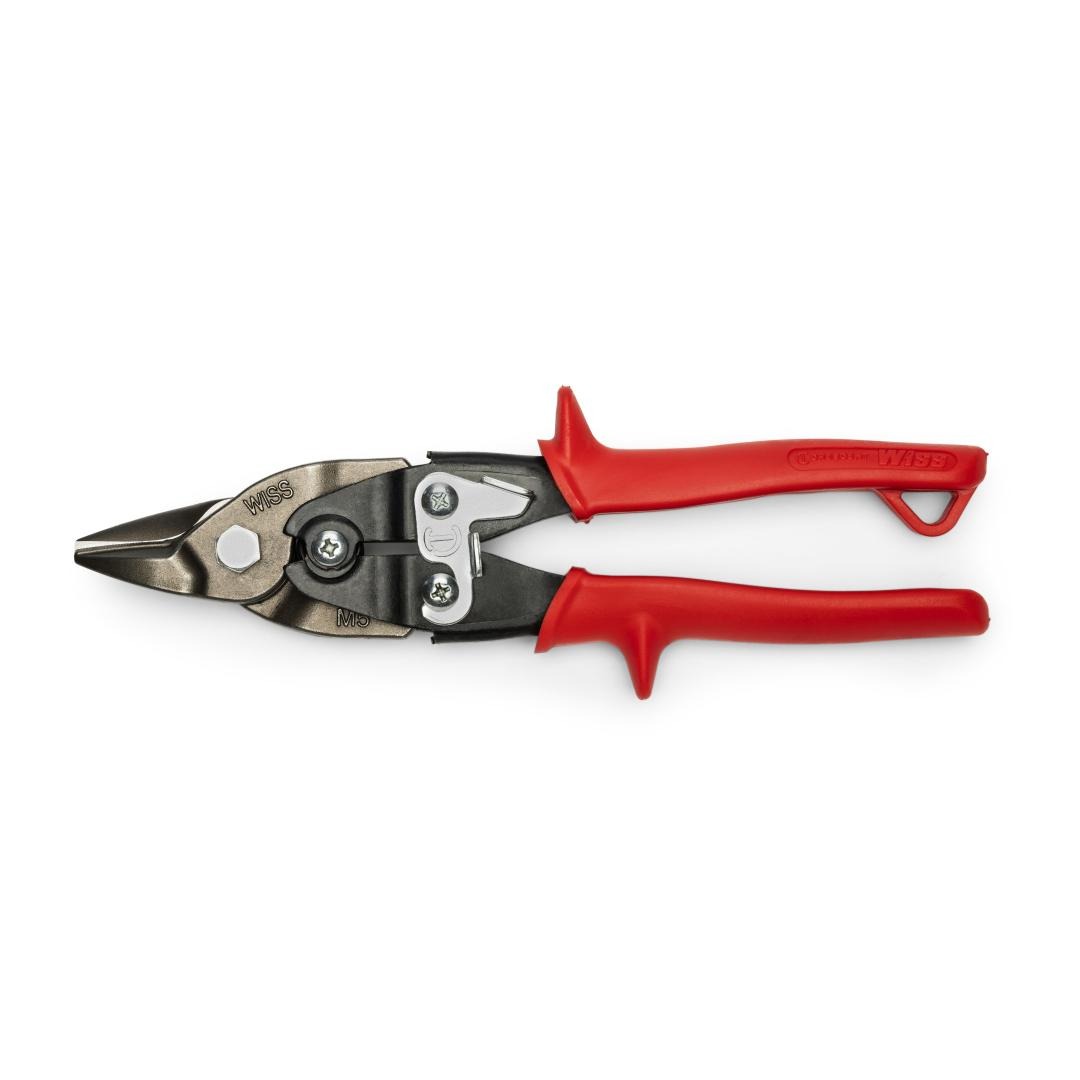

The Wiss M5R is a 9-1/4 in Bulldog aviation snip for straight cuts, designed for notching or trimming extra heavy stock. It cuts up to 16 gauge low carbon, rolled steel.
The blades are precision-cast with CNC-ground serrations for material control, and the manufacturer states that the design requires 20% less force to cut. A spring-loaded return, a single-handed latch for left- or right-handed users and non-slip handle grips with a hang hole complete the tool. Sold as a single snip.
Features
- Bulldog pattern for straight cuts
- For notching or trimming extra heavy stock
- Cuts up to 16 gauge low carbon, rolled steel
- Precision-cast, serrated blades with CNC-ground serrations
- Design requires 20% less force to cut, per the manufacturer
- Spring-loaded return and single-handed latch for left- or right-handed use
- Non-slip handle grips with built-in hang hole
Specifications
| Specification | Value |
|---|---|
| Model | M5R |
| Quantity | 1 piece |
| Type | Bulldog aviation snips, straight cut |
| Overall length | 9.25 in |
| Overall width | 1.115 in |
| Overall height | 3.1 in |
| Blade length | 0.88 in |
| Cutting capacity | 16 gauge low carbon steel |
| Cut type | serrated |
| Handle color | red |
| Weight | approx. 0.45 kg (1.00 lb catalog) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| M5R | BP-G-AAA-M5R |
