Description

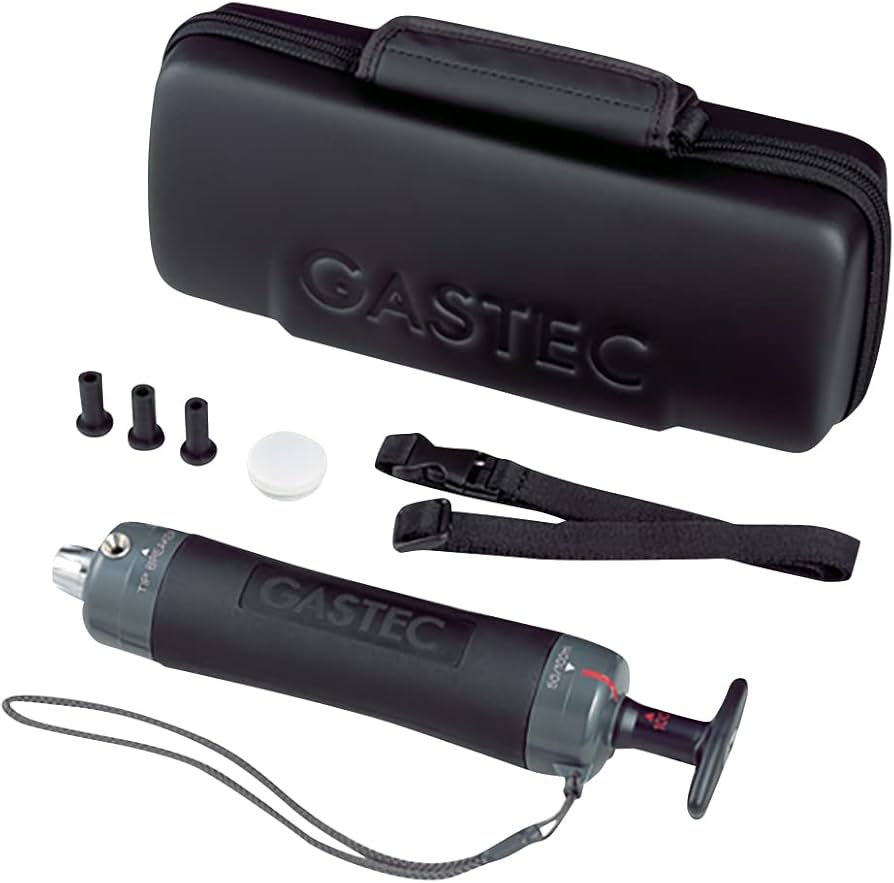

The Gastec GV-110S kit pairs the GV-110 hand-operated gas sampling pump with an automatic pump stroke counter, so you do not have to count strokes yourself. The pump draws a measured air sample (100 mL per full stroke, 50 mL per half stroke) through a Gastec detector tube. The kit comes in a compact case with a shoulder strap.
The pump has a built-in diamond-edge tip breaker with a bin for the broken tips, a red leakage indicator on the shaft, and a flow-finish indicator that pops out when the sample is complete. The counter tracks up to ten strokes. The kit includes three rubber tube inlets, lubricant and the instruction manual. Use only Gastec detector tubes with the pump; the tubes are sold separately.
Features
- Automatic stroke counter tracks up to ten strokes
- 100 mL full stroke and 50 mL half stroke, marked on the shaft
- Built-in diamond-edge tip breaker with a bin for broken tips
- Leakage indicator and flow-finish indicator
- Meets the leakage test of EN 1231, per the manufacturer
- Includes 3 rubber inlets, lubricant, instruction manual and carrying case with shoulder strap
Specifications
| Brand | Gastec |
|---|---|
| Manufacturer part number (MPN) | GV-110S |
| Big Papa SKU | BP-L-IGV110S |
| Type | Hand-operated gas sampling pump kit |
| Model | GV-110S (pump GV-110) |
| Sample volume | 100 mL (full stroke), 50 mL (half stroke) |
| Stroke counter | Automatic, up to 10 strokes |
| Tip breaker | Built-in, diamond edge |
| Body material | ABS resin and elastomer cover |
| Included | 3 rubber inlets, lubricant, instruction manual, carrying case with shoulder strap |
| Leakage test | EN 1231 (per the manufacturer) |
