Description

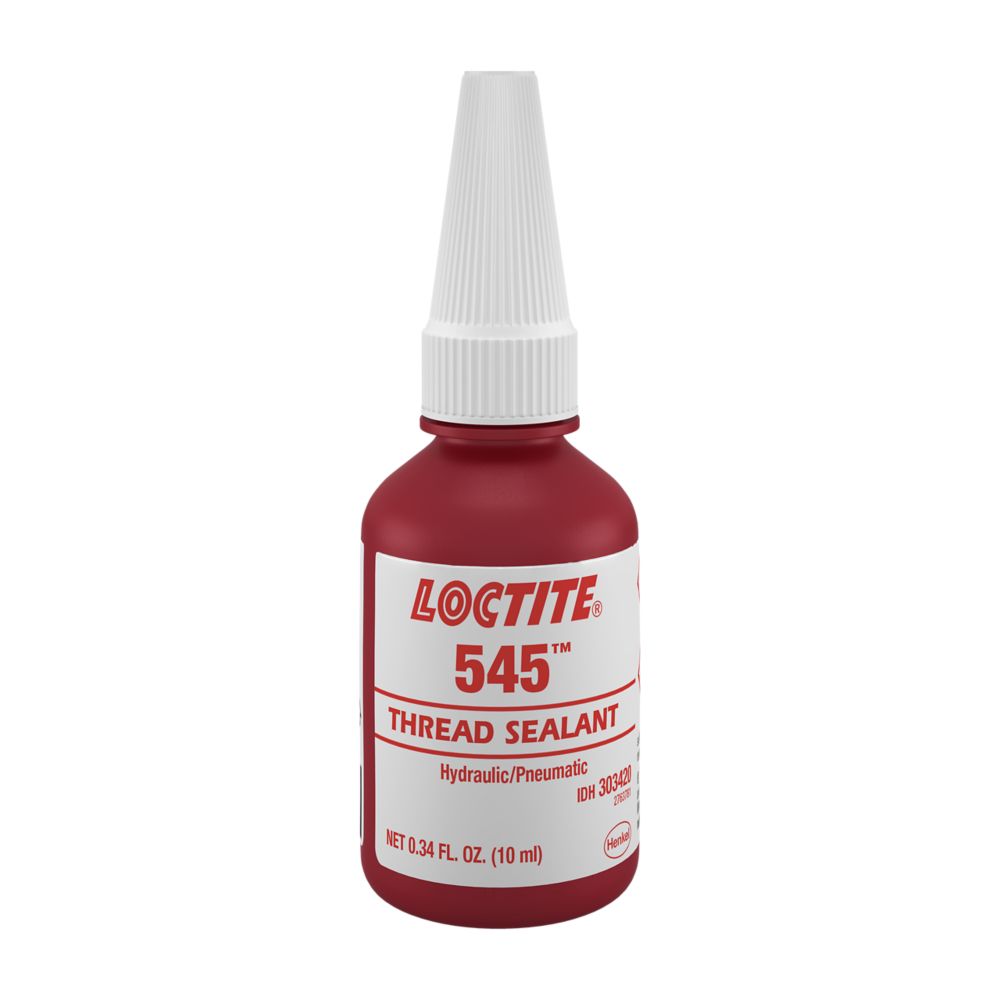

Loctite 545 is a purple, medium-viscosity anaerobic liquid made for sealing and locking small threaded metal fittings such as those found on hydraulic and pneumatic lines. It contains no solid fillers, has a built-in lubricity that helps fittings go together smoothly, and sets only when confined between close-fitting metal surfaces without air. Fluid power technicians and maintenance mechanics use it on pipe-thread connectors, and the joint can be undone later with standard hand tools.
The Safety Data Sheet (Henkel Canada, WHMIS 2015) lists skin irritant (Category 2), serious eye irritant (Category 2A), skin sensitizer (Category 1), suspected carcinogen (Category 2) and specific target organ toxicity after repeated exposure (Category 2), signal word Warning. Wear protective gloves, protective clothing and eye and face protection, avoid breathing vapours or mist and read the SDS first. Not for pure oxygen systems or chlorine service. Sold per 10 mL bottle.
Features
- Medium-viscosity anaerobic liquid with no fillers or particles, suited to small fittings
- Built-in lubricity eases assembly of threaded connections
- Published operating temperature range of -55 °C to 150 °C
- Solvent resistant once cured; tested against motor oil, gasoline and brake fluid in the TDS
- Seals to moderate pressure on assembly, with a 24 h cure advised for maximum pressure resistance
Specifications
| Brand | Loctite |
|---|---|
| Manufacturer part number (MPN) | 32429 |
| Big Papa SKU | BP-G-LCT-32429 |
| Technology | Acrylic, methacrylate ester, anaerobic |
| Appearance (uncured) | Purple liquid |
| Specific gravity at 25 °C | 1.02 |
| Viscosity, Brookfield RVT, spindle 3, 2.5 rpm | 9,000 to 20,000 mPa·s (cP) |
| Operating temperature | -55 °C to 150 °C (-65 °F to 300 °F) |
| Breakaway torque, M10 steel nuts and bolts, 24 h at 22 °C | 2 N·m (20 lb·in) |
| Compressive shear strength, steel pins and collars, 24 h at 22 °C | 1.5 N/mm² (220 psi) |
| Optimal storage temperature | 8 °C to 21 °C |
| Net contents | 10 mL |
| Henkel IDH no. | 303420 |
