Description

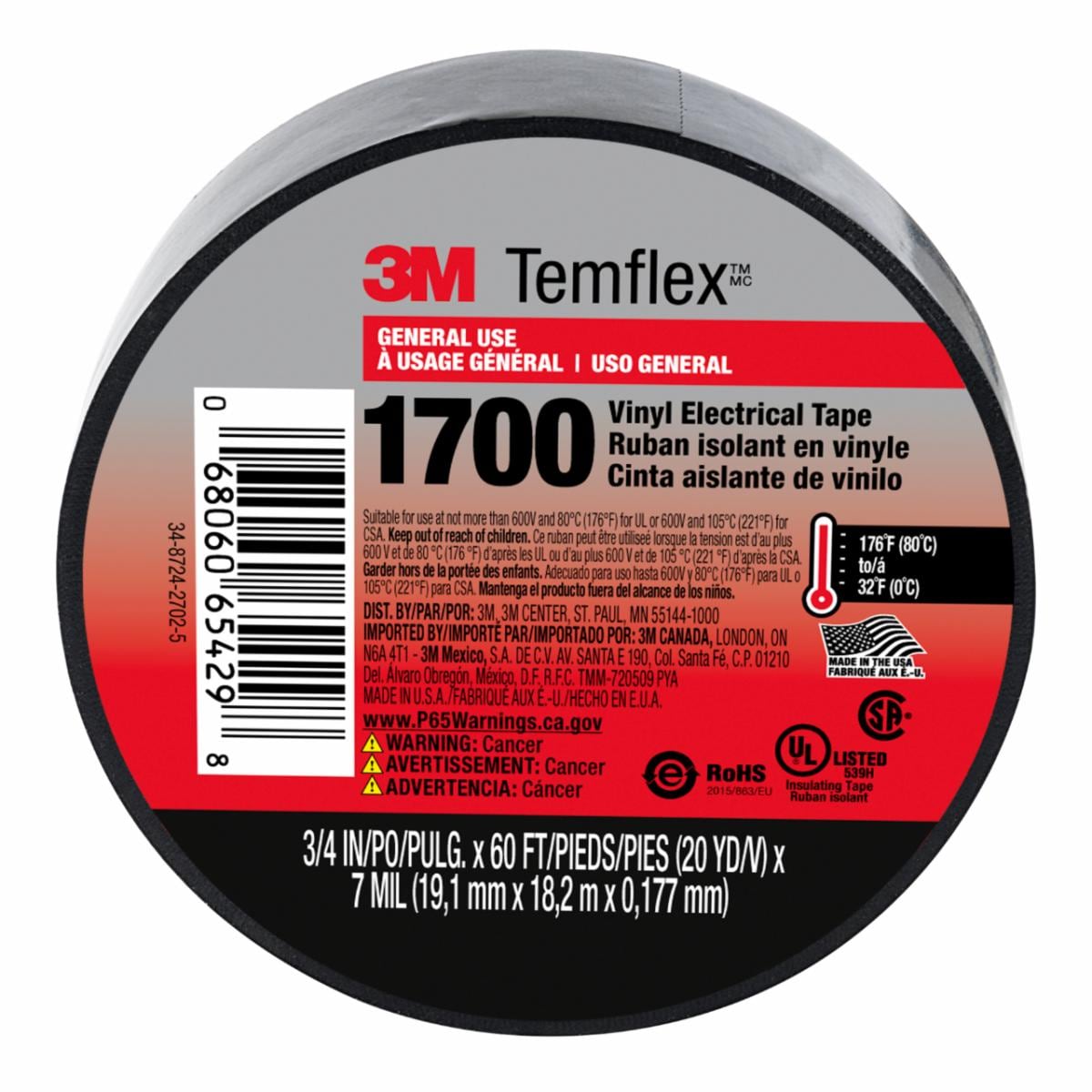

One roll of black PVC electrical insulating tape, 3/4 in wide and 60 ft long, with a rubber-resin adhesive. It is a general purpose tape used to insulate wire and cable splices, to jacket and repair cable, and to bundle wires into harnesses.
Apply it in half-lapped layers with light tension and finish the last wrap without tension. Ratings (voltage, temperature range, certifications) should be read per the manufacturer data sheet; store the roll in a clean, dry place.
Features
- Black PVC film with rubber-resin adhesive
- Resists abrasion, moisture, alkalis and acids per the maker
- Flame-retardant and conformable
- For splice insulation, cable jacketing and wire harnessing
- Indoor and outdoor use per the data sheet
Specifications
| Specification | Value |
|---|---|
| Brand | 3M |
| Series | Temflex 1700 |
| Colour | black |
| Width | 3/4 in (19 mm) |
| Length | 60 ft (18.3 m) |
| Thickness | 7 mil (0.18 mm) |
| Backing | PVC |
| Adhesive | rubber-resin |
| Operating temperature | 0 to 80 C per the manufacturer data sheet |
| Voltage rating | up to 600 V per the manufacturer data sheet |
| Pack quantity | 1 roll |
| Weight | approx. 0.09 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| TEMF-1 | BP-HW-MMM-TEMF1 |
Documents
