Description

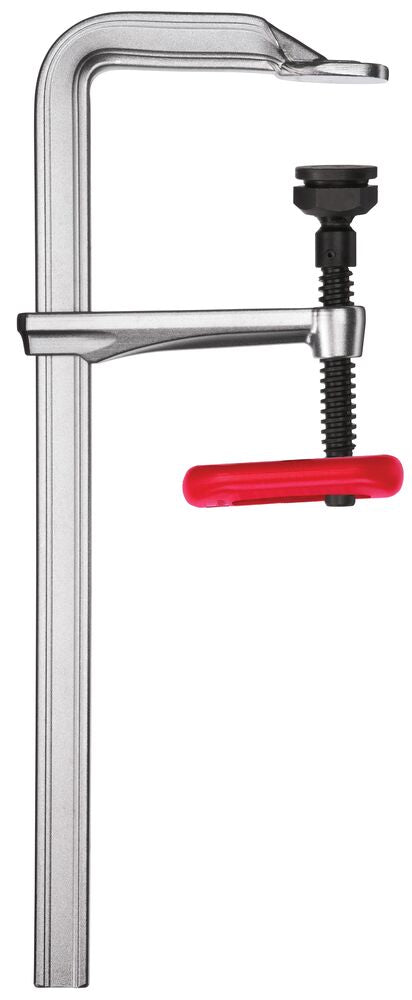

The Bessey 2400S-12 is a regular duty all-steel bar clamp from the 2400S series, with a clamping capacity of 12 in (305 mm) and a throat depth of 5-1/2 in (140 mm). The manufacturer lists a nominal clamping force of 2,800 lb for this size and names metal construction and locksmith work among its areas of application.
It has a tilting MorPad pressure pad, an ergonomic grip, a U-shaped sliding arm and a sliding-pin T-handle, with a heat-treated Acme-threaded screw that the manufacturer describes as spatter resistant. Sold as a single clamp. Wear safety goggles and gloves and tighten by hand only, as the manufacturer advises.
Features
- MorPad pressure pad tilts up to 35°
- Rail profile designed, per the manufacturer, to give more clamp force with fewer spindle turns
- Ergonomic grip as standard
- U-shaped sliding arm for straight-line force transmission
- Electro-galvanized sliding-pin T-handle with rounded ends
- Heat-treated high-carbon Acme-threaded screw, spatter resistant
- Steel rail and phosphated steel pressure plate
Specifications
| Specification | Value |
|---|---|
| Model | 2400S-12 |
| Quantity | 1 piece |
| Type | all-steel bar clamp, regular duty (2400S series) |
| Clamping capacity | 12 in (305 mm) |
| Throat depth | 5-1/2 in (140 mm) |
| Clamping force | 2,800 lb (nominal, per the manufacturer) |
| Weight | approx. 6.68 lb (3.03 kg, per the manufacturer) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 2400S-12 | BP-G-BES-2400S12 |
