Description

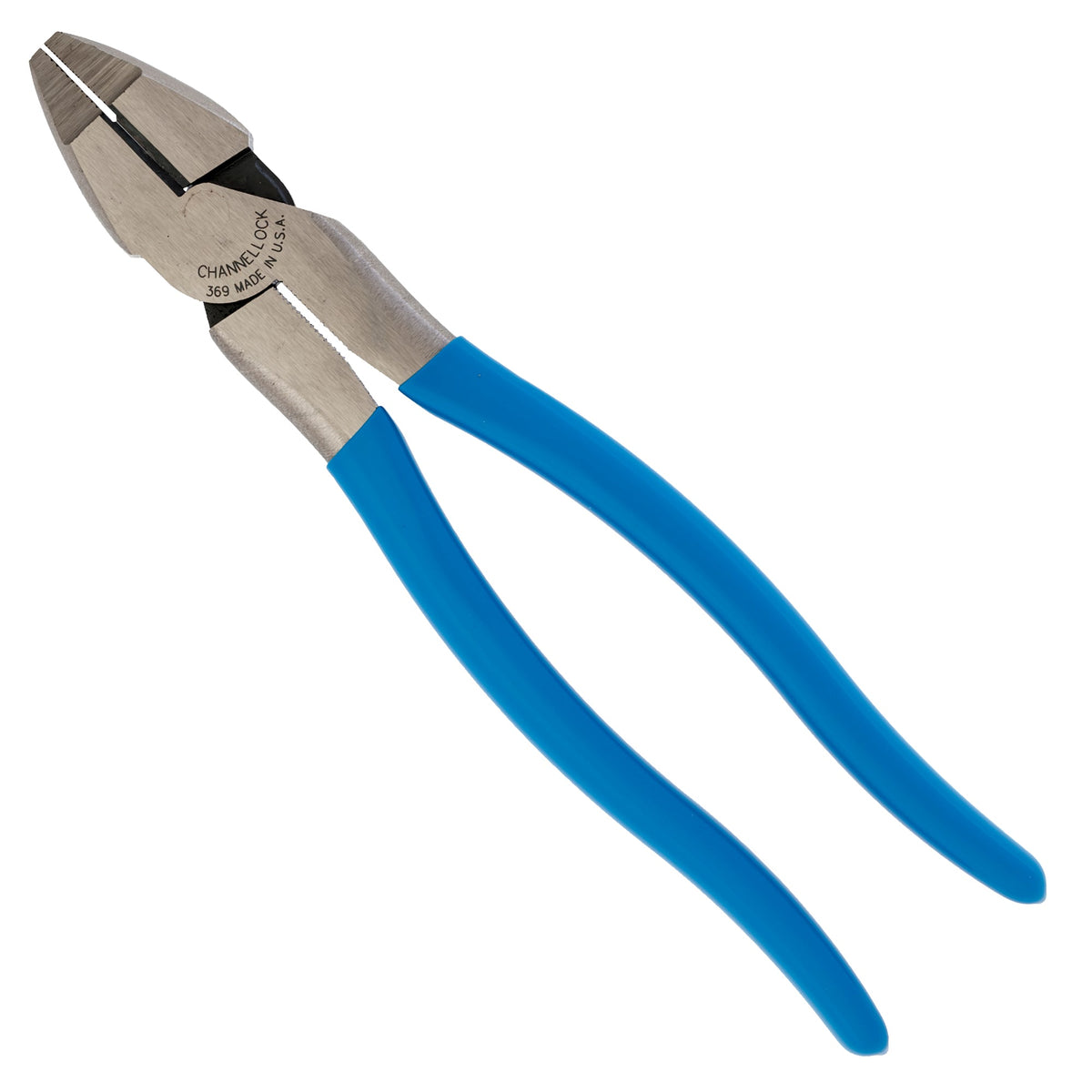

The Channellock 369 is a linemen’s plier with a round nose, 9.5 in (241 mm) long. It combines gripping jaws and a cutting section in one tool, and its rivet is placed close to the cutting edge (XLT design) to ease cutting.
Used in electrical and line work to grip, twist and bend conductors and to cut wire and ACSR cable. The jaws have crosshatch teeth, the cutting edges are heat-treated by laser, and the forged steel body has a rust-resistant coating.
Features
- XLT design with the rivet close to the cutting edge
- Crosshatch teeth on the round nose jaws for grip
- Laser heat-treated knife and anvil cutting edges
- Cuts ACSR cable
- Forged high carbon steel with rust-resistant coating and blue grips
Specifications
| Specification | Value |
|---|---|
| Model | 369 |
| Type | Round nose linemen’s pliers |
| Overall length | 9.5 in (241 mm) |
| Jaw length | 1.54 in (39.1 mm) |
| Cutting edge length | 0.73 in (18.5 mm) |
| Joint width | 1.32 in (33.5 mm) |
| Joint thickness | 0.55 in (14 mm) |
| Handle span | 1.89 in (48 mm) |
| Jaw | round nose, crosshatch teeth |
| Material | forged high carbon steel, rust-resistant coating |
| Handle | blue grips |
| Weight | 1.08 lb (0.49 kg) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 369 | BP-HW-CHL-369 |
