Description

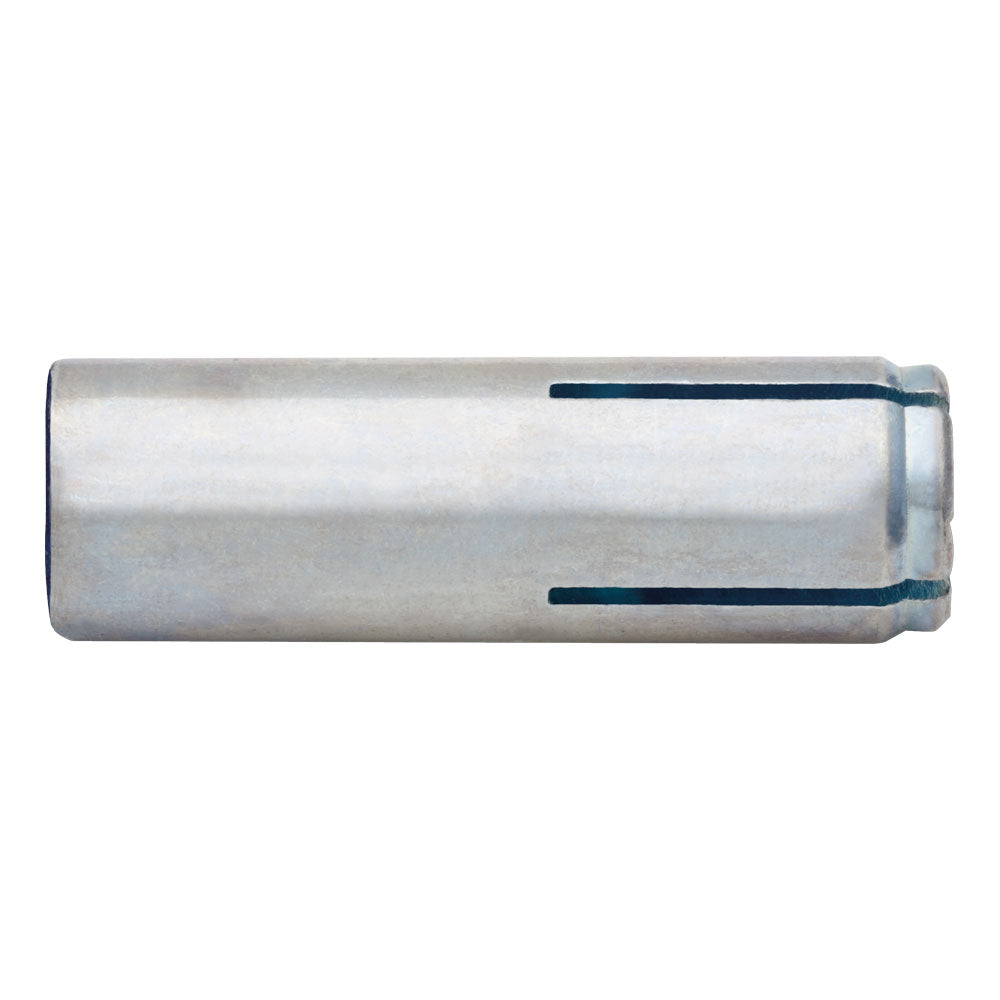

Single DeWalt Smart DI+ 6304SD-PWR internally threaded drop-in anchor, sold each (one piece). It is a zinc-plated carbon steel anchor for 1/4 in (6.35 mm) threaded rod or bolts (1/4-20 UNC), set in a 3/8 in (9.5 mm) hole with a minimum embedment of 1 in (25 mm). The Smart DI design is described by the maker as taking less effort to set than a traditional drop-in anchor.
Intended by the maker for solid concrete, hard stone and solid block, for uses such as suspended conduit, pipe supports, cable trays, strut and formwork. The anchor is set with a DeWalt manual setting tool or the Smart DI system (setting tools and drill bits are sold separately). Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Internally threaded, so the bolt can be removed for service
- Zinc-plated carbon steel body and plug
- Designed for solid concrete, hard stone and solid block
- Can be set with a manual setting tool or the Smart DI system
- Sold singly; the maker packs 100 per box
Specifications
| Specification | Value |
|---|---|
| Model | 6304SD-PWR |
| Quantity | 1 piece |
| Rod/bolt size | 1/4 in (6.35 mm), 1/4-20 UNC |
| Drill bit diameter | 3/8 in (9.5 mm) |
| Overall length | 1 in (25 mm) |
| Minimum embedment | 1 in (25 mm) |
| Thread depth | 7/16 in (11 mm) |
| Max. tightening torque | 5 ft-lb (6.8 N·m) |
| Min. base material thickness | 3 in (76 mm) |
| Material | zinc-plated carbon steel |
| Weight | approx. 0.008 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 6304SD-PWR | BP-G-DEW-6304SD |
