Description

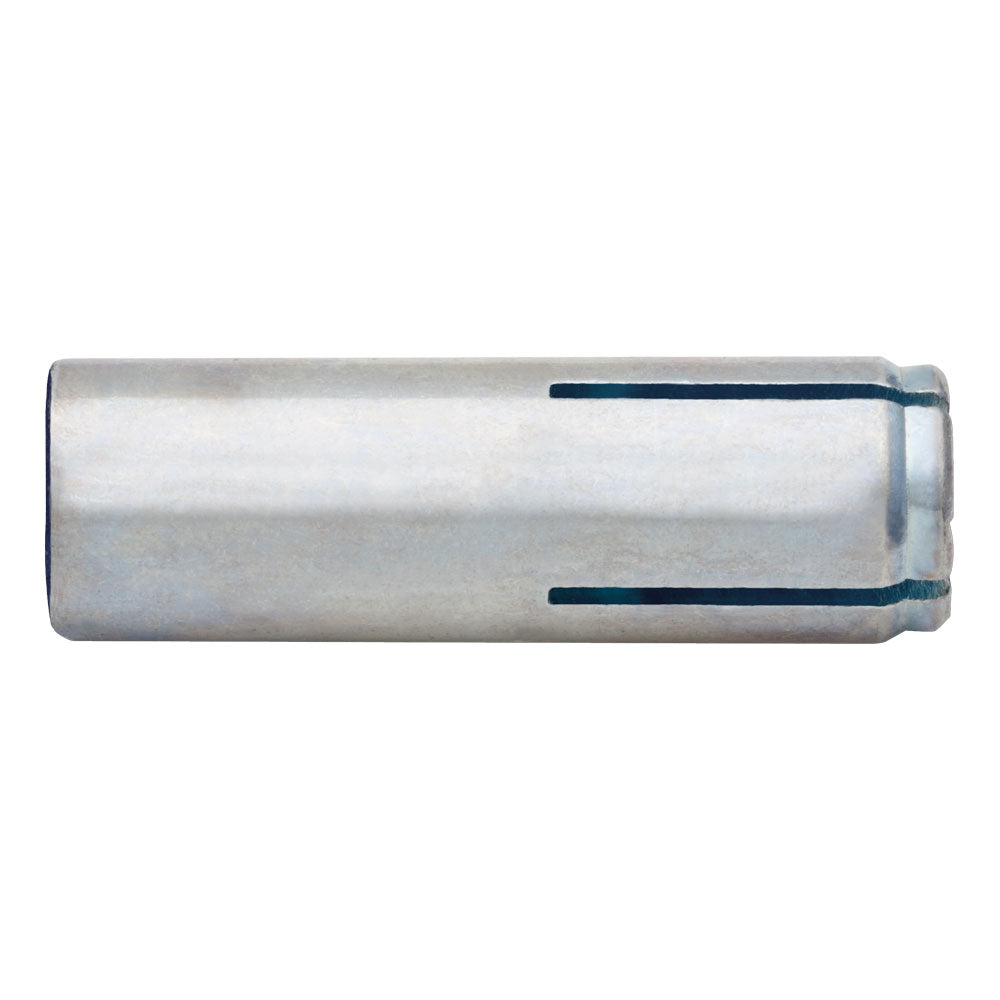

Single DeWalt Smart DI+ 6306SD-PWR internally threaded drop-in anchor, sold each (one piece). It is a zinc-plated carbon steel anchor for 3/8 in (9.5 mm) threaded rod or bolts (3/8-16 UNC), set in a 1/2 in (12.7 mm) hole with a minimum embedment of 1-9/16 in (40 mm). The Smart DI design is described by the maker as taking less effort to set than a traditional drop-in anchor.
Intended by the maker for solid concrete, hard stone and solid block, for uses such as suspended conduit, pipe supports, cable trays, strut and formwork. The anchor is set with a DeWalt manual setting tool or the Smart DI system (setting tools and drill bits are sold separately). Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Internally threaded, so the bolt can be removed for service
- Zinc-plated carbon steel body and plug
- Designed for solid concrete, hard stone and solid block
- Can be set with a manual setting tool or the Smart DI system
- Sold singly; the maker packs 50 per box
Specifications
| Specification | Value |
|---|---|
| Model | 6306SD-PWR |
| Quantity | 1 piece |
| Rod/bolt size | 3/8 in (9.5 mm), 3/8-16 UNC |
| Drill bit diameter | 1/2 in (12.7 mm) |
| Overall length | 1-9/16 in (40 mm) |
| Minimum embedment | 1-9/16 in (40 mm) |
| Thread depth | 5/8 in (16 mm) |
| Max. tightening torque | 10 ft-lb (13.6 N·m) |
| Min. base material thickness | 3 in (76 mm) |
| Material | zinc-plated carbon steel |
| Weight | approx. 0.02 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 6306SD-PWR | BP-G-DEW-6306SD |
