Description

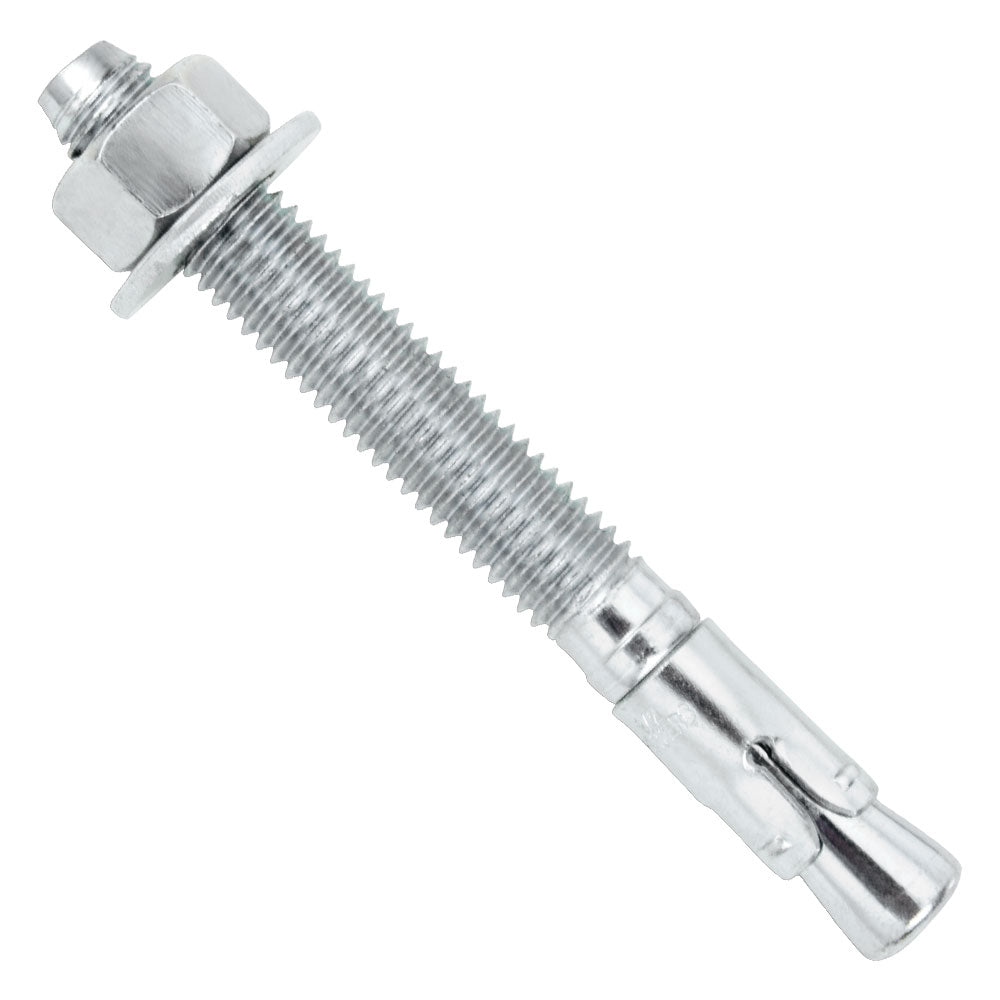

Single DeWalt Power-Stud+ SD1 wedge expansion anchor, model 7426SD1, 1/2 in (12.7 mm) diameter and 7 in (178 mm) overall length, sold individually (per piece). The body, expansion clip, nut and washer are zinc-plated carbon steel, and the fully threaded stud is supplied with its nut and washer already fitted.
Designed for fixing into concrete and grouted masonry: it is set in a hole drilled with a 1/2 in bit, then tightened with a torque wrench to expand the clip. The manufacturer packs this model in boxes of 25; here you can order as few or as many pieces as you need. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Sold individually (per piece)
- Zinc-plated carbon steel body, clip, nut and washer
- Fully threaded stud, about 5-1/4 in (133 mm) of thread
- Torque-controlled wedge expansion set
- Drill bit size equal to the anchor diameter (1/2 in)
Specifications
| Specification | Value |
|---|---|
| Model | 7426SD1 |
| Quantity | 1 anchor (sold individually) |
| Diameter x length | 1/2 x 7 in (12.7 x 178 mm) |
| Material | Zinc-plated carbon steel |
| Thread | UNC, fully threaded, approx. 5-1/4 in (133 mm) |
| Drill bit | 1/2 in (12.7 mm) |
| Min. embedment depth | 2-1/4 in (57 mm) |
| Min. hole depth | 2-1/2 in (64 mm) |
| Installation torque (concrete) | 40 ft-lbf (54 N·m) |
| Socket size | 3/4 in (19 mm) |
| Manufacturer pack | 25 pieces |
| Weight | approx. 0.24 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7426SD1-PWR | BP-G-DEW-7426SD1 |
