Description

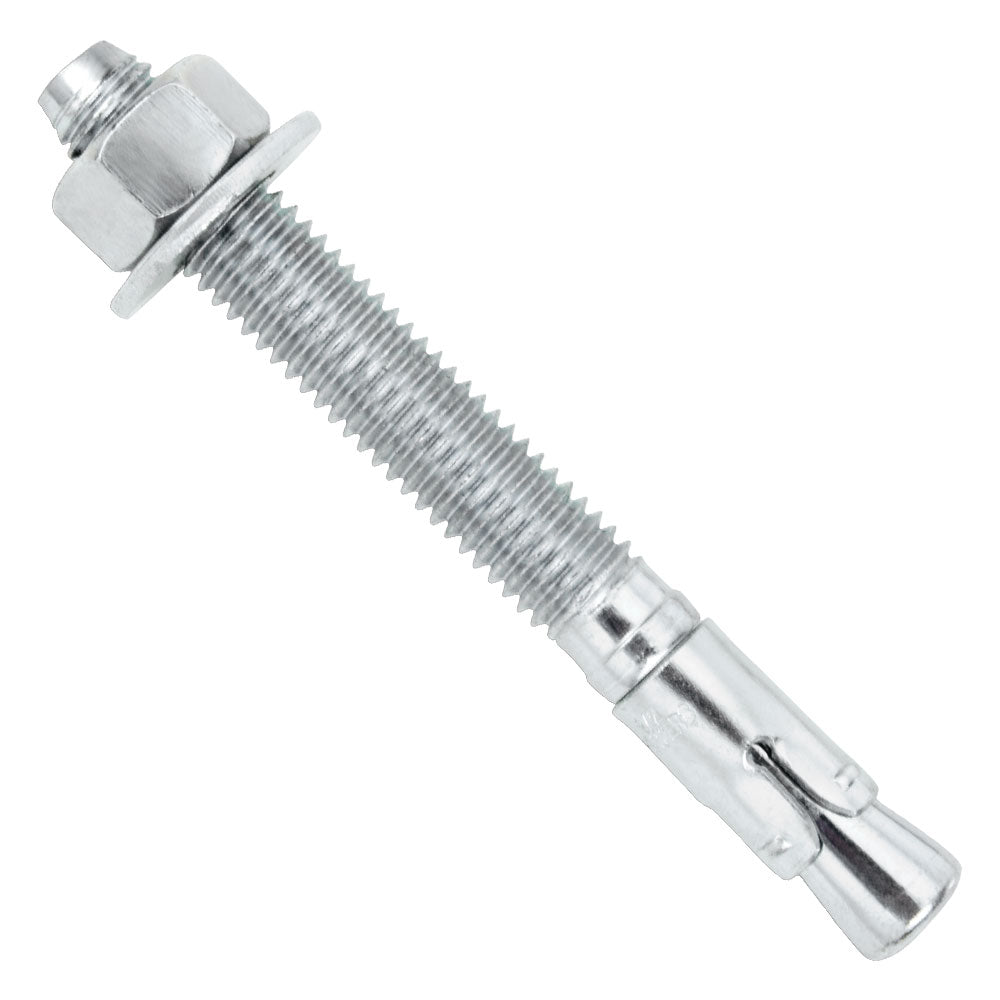

Single DeWalt Power-Stud+ SD1 wedge expansion anchor, model 7433SD1, 5/8 in (15.9 mm) diameter and 5 in (127 mm) overall length, sold individually (per piece). The body, expansion clip, nut and washer are zinc-plated carbon steel, and the fully threaded stud is supplied with its nut and washer already fitted.
Designed for fixing into concrete and grouted masonry: it is set in a hole drilled with a 5/8 in bit, then tightened with a torque wrench to expand the clip. The manufacturer packs this model in boxes of 25; here you can order as few or as many pieces as you need. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Sold individually (per piece)
- Zinc-plated carbon steel body, clip, nut and washer
- Fully threaded stud, about 3 in (76 mm) of thread
- Torque-controlled wedge expansion set
- Drill bit size equal to the anchor diameter (5/8 in)
Specifications
| Specification | Value |
|---|---|
| Model | 7433SD1 |
| Quantity | 1 anchor (sold individually) |
| Diameter x length | 5/8 x 5 in (15.9 x 127 mm) |
| Material | Zinc-plated carbon steel |
| Thread | UNC, fully threaded, approx. 3 in (76 mm) |
| Drill bit | 5/8 in (15.9 mm) |
| Min. embedment depth | 2-3/4 in (70 mm) |
| Min. hole depth | 3 in (76 mm) |
| Installation torque (concrete) | 80 ft-lbf (108 N·m) |
| Socket size | 15/16 in (24 mm) |
| Manufacturer pack | 25 pieces |
| Weight | approx. 0.3 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7433SD1-PWR | BP-G-DEW-7433SD1 |
