Description

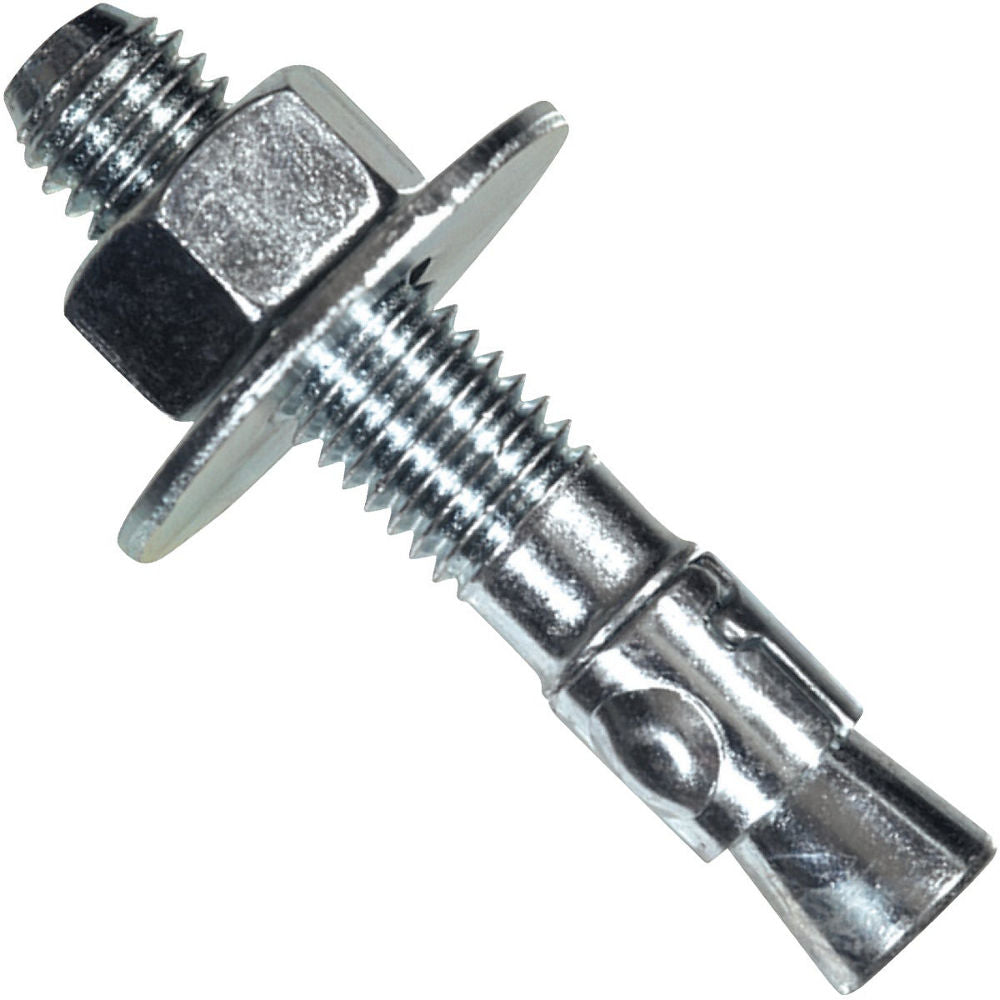

Power-Stud+ SD1 wedge anchors for fastening steel plates, brackets, rails and equipment to concrete. A threaded stud with an expansion clip grips the hole wall as the nut is tightened.
Pack of 10 zinc-plated anchors, 5/8 in x 5 in. Drill a hole with a bit of the same nominal diameter as the anchor, clean it, insert the anchor and tighten the nut. Check the manufacturer technical data for embedment depth and tightening torque before installing.
Features
- Torque-controlled wedge expansion anchor
- Fully threaded stud
- Zinc-plated steel
- For anchoring into concrete
- Drill bit diameter equals anchor diameter
Specifications
| Specification | Value |
|---|---|
| Brand | Hillman |
| Model | 371948 |
| Series | Power-Stud+ SD1 |
| Type | Wedge expansion anchor |
| Material | Steel |
| Finish | Zinc-plated |
| Diameter | 5/8 in (15.9 mm) |
| Length | 5 in (127 mm) |
| Drill bit size | 5/8 in (same as anchor diameter) |
| Base material | Concrete |
| Pack quantity | 10 pieces |
| Shipping weight | approx. 1.9 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 371948 | BP-HW-HIL-371948 |
