Description

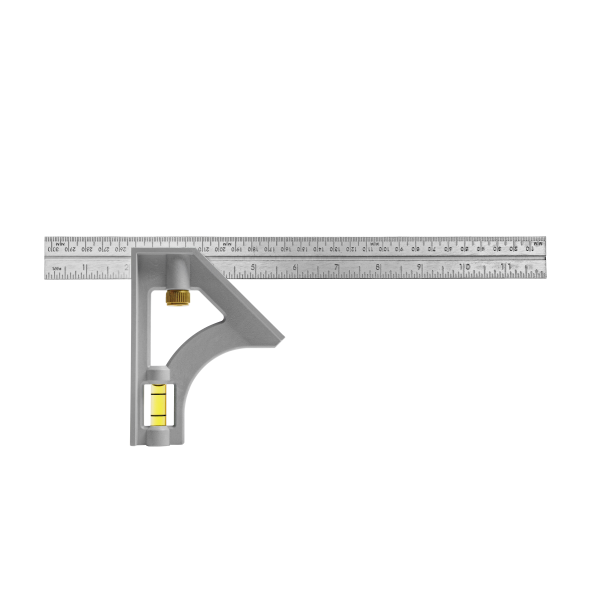

The Johnson Level 415EM is a 12 in inch/metric combination square with a stainless steel blade and a Structo-Cast molded reversible head with a built-in level vial, per the manufacturer. The blade graduations are stamped in 1/8 in, 1/16 in, 1/32 in and millimeters.
The manufacturer describes an Auto-Lock blade assembly for aligning the blade, a lock bolt and steel screw securing the head, and use for measuring 45 and 90 degree angles, marking miters and checking depth. Sold as a single square.
Features
- Stainless steel blade with stamped graduations in 1/8 in, 1/16 in, 1/32 in and mm
- Structo-Cast molded reversible head
- Lock bolt and steel screw secure the head
- Auto-Lock blade assembly for blade alignment
- Built-in level vial for checking level and plumb
- Measures 45 and 90 degree angles, marks miters, finds depth
Specifications
| Specification | Value |
|---|---|
| Model | 415EM |
| Quantity | 1 piece |
| Type | inch/metric combination square |
| Blade length | 12 in (about 30.5 cm, converted) |
| Blade | stainless steel |
| Graduations | 1/8 in, 1/16 in, 1/32 in and mm (stamped) |
| Head | Structo-Cast molded, reversible |
| Level vial | built in |
| Blade lock | Auto-Lock assembly, lock bolt and steel screw |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 415EM | BP-G-JLV-415EM |
