Description

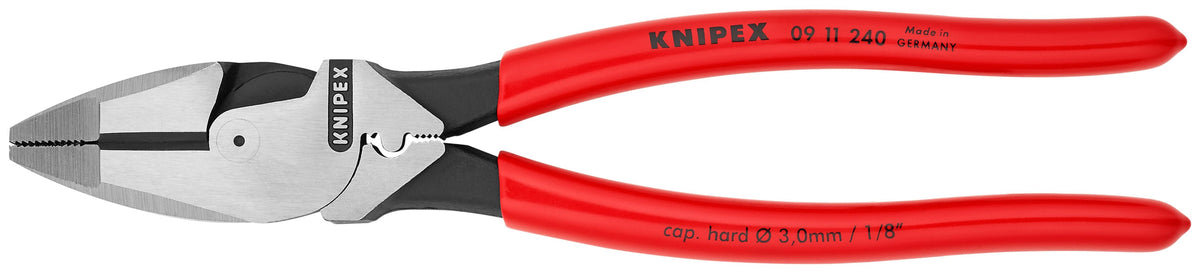

The Knipex 09 11 240 is a 9-1/2 in high leverage lineman’s pliers with a New England head, a fish tape puller in the joint gap and a universal crimping point below the joint. The manufacturer states that its transmission ratio is optimized for easy cutting.
Per the manufacturer, it has a cross-hatched knurled gripping zone in the jaws, a serrated gripping zone below the joint, and cutting edges for soft and hard wire, nails and piano wire (approx. 64 HRC). Vanadium steel, forged and multi-stage oil-hardened, with plastic-coated handles. Sold as a single tool.
Features
- 9-1/2 in high leverage lineman’s pliers, New England head
- Fish tape puller in the joint gap
- Universal crimping point below the joint (mandrel crimp, 1 position)
- Optimized transmission ratio for easy cutting, per the manufacturer
- Cross-hatched knurled gripping zone in the jaws; serrated zone below the joint
- Cutting edges for soft and hard wire, nails and piano wire (approx. 64 HRC)
- Vanadium steel, forged and multi-stage oil-hardened
- Plastic-coated handles
Specifications
| Specification | Value |
|---|---|
| Model | 09 11 240 |
| Quantity | 1 piece |
| Type | high leverage lineman’s pliers, New England head, with fish tape puller and crimper |
| Length | 9-1/2 in |
| Width | 2 in |
| Height | 5/8 in |
| Cutting capacity, hard wire (steel wire) | 1/8 in |
| Cutting capacity, medium-hard wire (nail) | 3/16 in |
| Cutting edge | bevel |
| Gripping surface | cross-hatched |
| Crimping profile | mandrel crimp, 1 position |
| Joint | rivet |
| Handle | plastic coating |
| Finish | polished, black atramentized |
| Material | vanadium steel, forged, multi-stage oil-hardened |
| Standard | DIN ISO 5746; ASME B107.20 |
| Country of origin | Germany |
| Weight | 0.41 kg (0.905 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 09-11-240 | BP-G-KNI-0911240 |
