Description

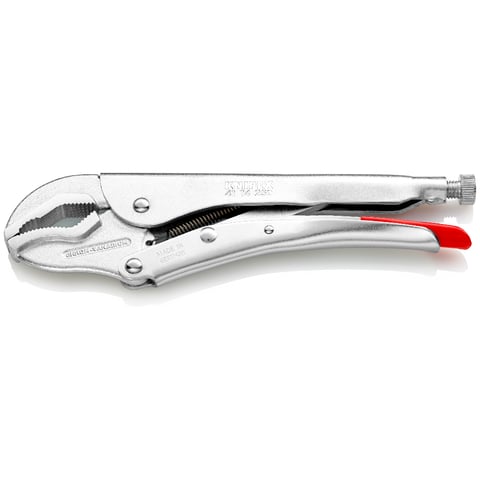

The Knipex 41 14 250 is a 250 mm (about 10 in) locking grip plier with a semi-circular jaw that has a flat contact area at the tip. A toggle lever builds the clamping force and a set screw sets the opening.
It holds round, profiled and flat workpieces firmly, for example to hold parts together or to turn a seized nut. The body is rolled steel with forged jaws, the surface is galvanized, and a release lever opens the pliers with one hand.
Features
- Double-prism jaws for round, profiled and flat material
- Toggle lever action for high clamping pressure
- Set screw for fine adjustment of the opening
- Release lever for one-hand opening
- Rolled steel body with forged gripping jaws, galvanized finish
Specifications
| Specification | Value |
|---|---|
| Part No. | 41 14 250 |
| Type | Grip pliers (locking pliers) |
| Length | 250 mm (9.84 in) |
| Dimensions | 250 x 69 x 17 mm (9.84 x 2.72 x 0.67 in) |
| Clamping width, round | 36 mm (1.42 in) |
| Clamping width, square | 36 mm (1.42 in) |
| Clamping width, hexagon | 36 mm (1.42 in) |
| Jaw | semi-circular, double prism |
| Body | high-strength rolled steel |
| Gripping jaws | forged |
| Finish | galvanized |
| Weight | 557 g (1.23 lb) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 41 14 250 | BP-HW-KNX-4114250 |
