Description

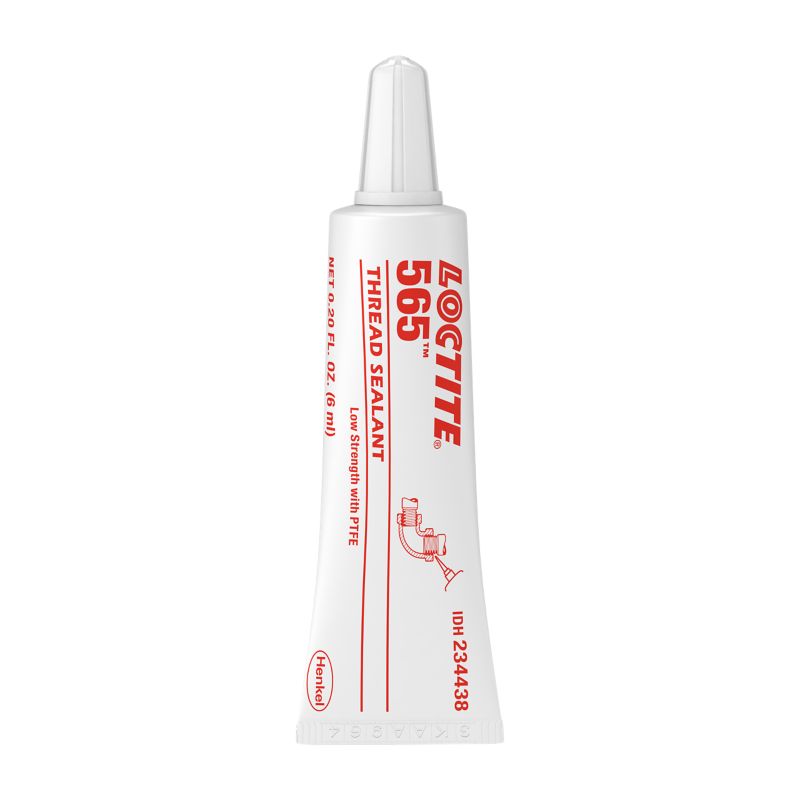

Loctite 565 is a one-part, white to off-white anaerobic thread sealant paste containing PTFE, made for locking and sealing metal pipes and fittings. It cures when confined between close-fitting metal threads, gives a low-strength seal that allows later disassembly with standard tools, and seals instantly to moderate pressure. Maintenance and plant crews use it on threaded metal pipe fittings.
The Safety Data Sheet classifies the product as a skin irritant (Category 2), an eye irritant (Category 2A) and a repeated-exposure target organ toxicant (Category 2). Wear protective gloves, eye protection and face protection, avoid breathing vapours or mist and read the Safety Data Sheet before use. Sold per 6 mL tube.
Features
- Seals and locks metal pipes and fittings; contains PTFE
- Low-strength cure allows later disassembly with standard hand tools
- Seals instantly to moderate pressure; full cure in 24 hours
- Pressure-tested to 207 bar (3,000 psi) on 3/8 NPT steel fittings
- Handy 6 mL tube
Specifications
| Brand | Loctite |
|---|---|
| Manufacturer part number (MPN) | 56507 |
| Big Papa SKU | BP-G-LCT-56507 |
| Chemical type | Methacrylate ester (acrylic) |
| Components | One part, no mixing |
| Appearance (uncured) | White to off-white paste |
| Cure mechanism | Anaerobic; activator as secondary cure |
| Specific gravity at 25 °C | 1.1 |
| Viscosity, Brookfield RVF, 25 °C (spindle 7, 2 rpm) | 175,000 to 525,000 mPa·s |
| Breakaway torque, 3/8 NPT steel tees and plugs (72 h) | 5 N·m (45 lb·in) |
| Pressure resistance | Tested to 207 bar (3,000 psi) |
| Potable water | Certified to ANSI/NSF 61 up to 82 °C |
| Net contents | 6 mL tube (Henkel IDH 234438, item 56507) |
