Description

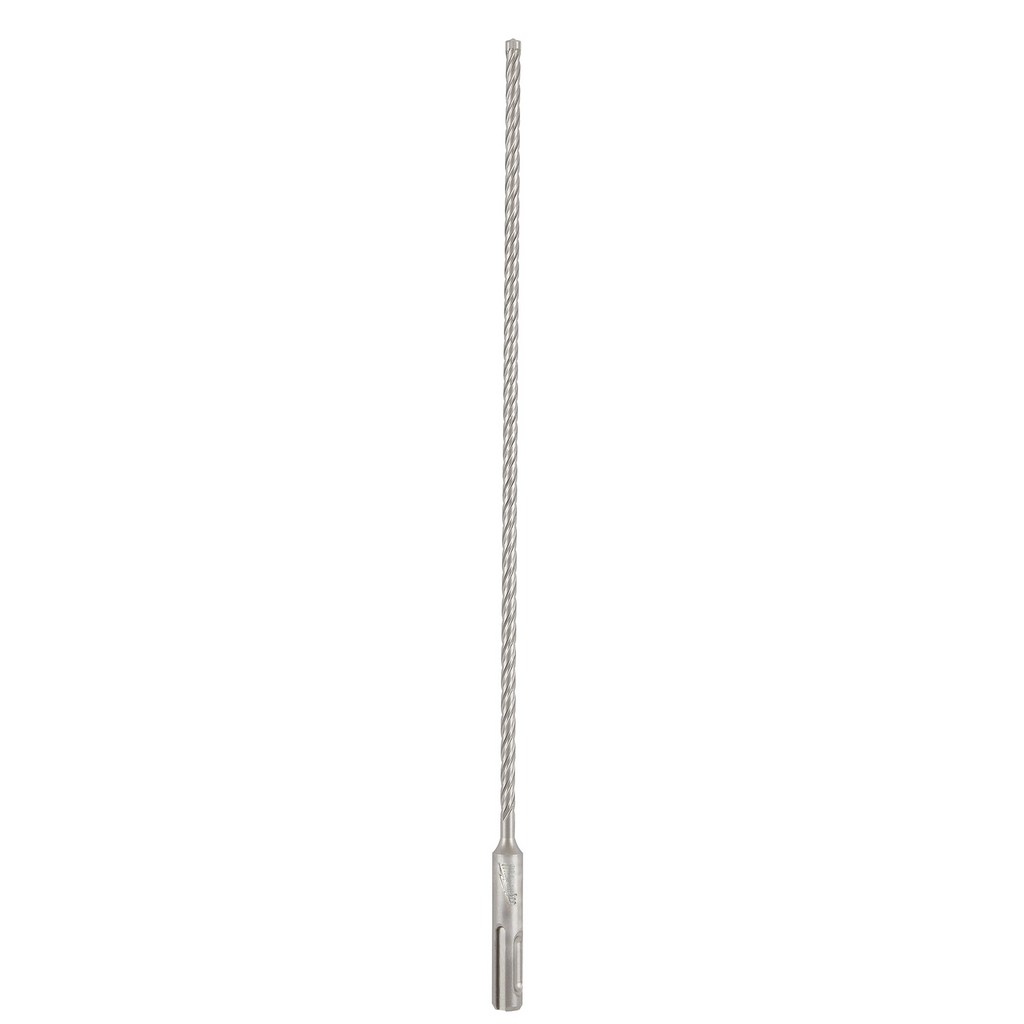

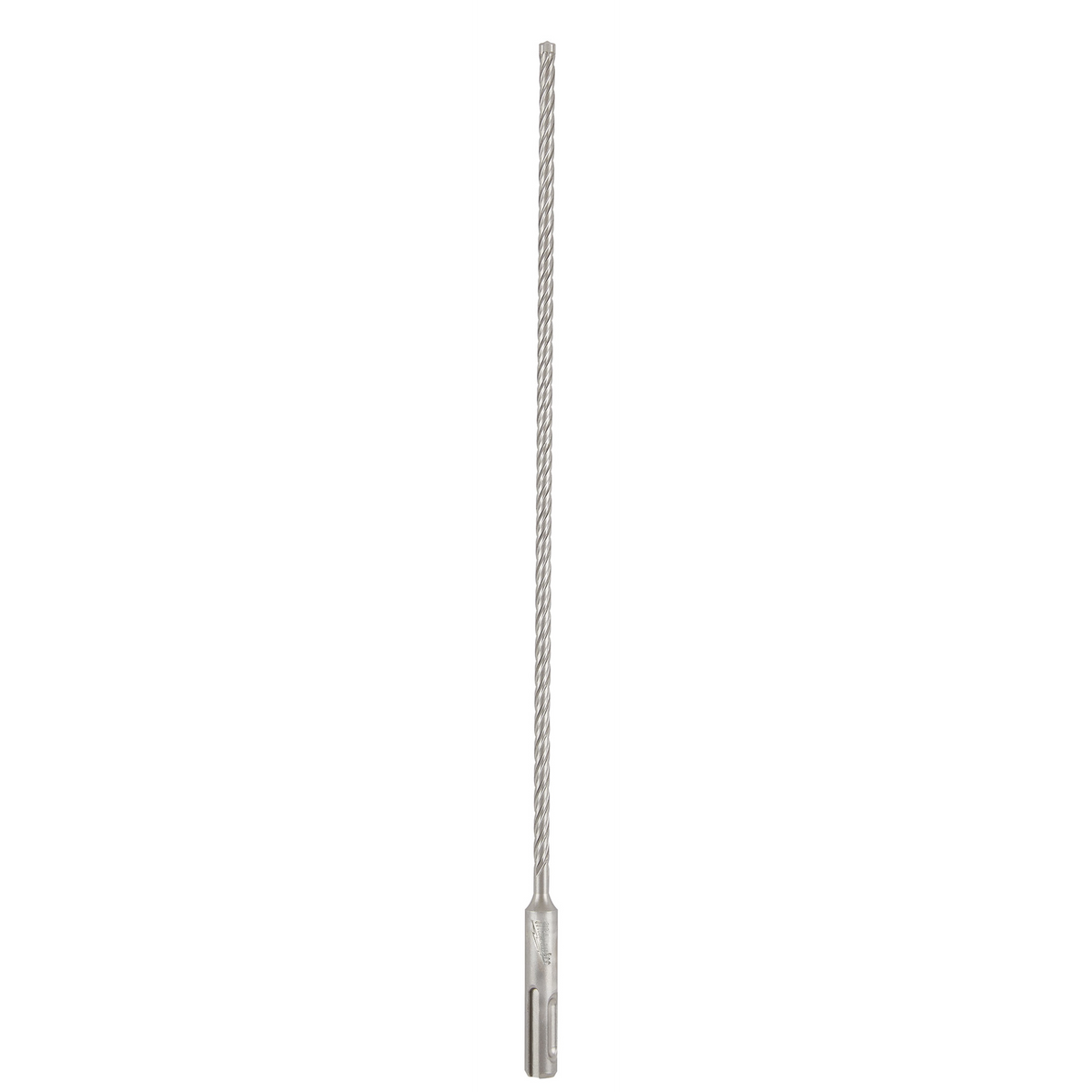

The Milwaukee 48-20-7314 is a single SDS-Plus rotary hammer drill bit sized 3/16 in x 10 in x 12 in. The manufacturer lists a 3/16 in diameter, a 10 in usable length, a 12 in overall length and a 4-cutter head with a carbide tip.
Per the manufacturer, it is for concrete and masonry work in SDS-Plus rotary hammers. Sold as one bit.
Features
- Single SDS-Plus rotary hammer drill bit
- 3/16 in diameter
- 10 in usable length
- 12 in overall length
- 4-cutter head
- Carbide head, per the manufacturer
- For concrete and masonry, per the manufacturer
- Sold as one bit
Specifications
| Specification | Value |
|---|---|
| Model | 48-20-7314 |
| Quantity | 1 piece |
| Type | rotary hammer drill bit, 4-cutter |
| Shank | SDS-Plus |
| Diameter | 3/16 in |
| Usable length | 10 in (25.4 cm, converted) |
| Overall length | 12 in (30.5 cm, converted) |
| Head | carbide |
| Weight | 0.15 lb (0.07 kg, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 48-20-7314 | BP-G-MWK-48207314 |
