Description

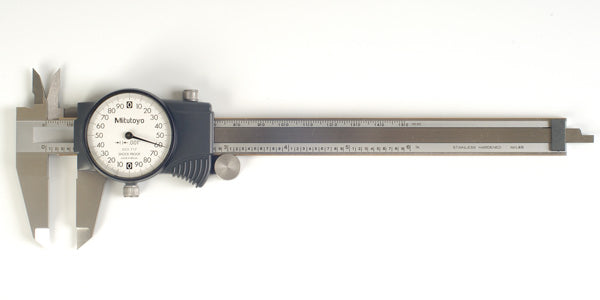

The Mitutoyo 505-740 is a mechanical dial caliper from the Series 505, listed for inch measurement only with a range of 0-6 in. The manufacturer lists a graduation of 0.001 in, a pitch of 0.2 in per revolution and a stated accuracy of ±0.001 in. The listed mass is 175 g.
Per the manufacturer, the Series 505 dial design gives smooth sliding with better shock protection, and the improved dial face offers faster readability. It measures outside and inside dimensions, depth and steps, and a lock screw holds the dial measurement and sliding jaw position. The series is supplied in a fitted plastic case. Purely mechanical: no battery or electronics.
Features
- Dial caliper, inch only: 0-6 in
- Graduation 0.001 in, 0.2 in per revolution (per the manufacturer)
- Accuracy ±0.001 in (per the manufacturer)
- Measures outside and inside dimensions, depth and steps
- Improved dial face for faster reading (per the manufacturer)
- Lock screw holds the dial measurement and sliding jaw position
- Series supplied in a fitted plastic case (per the manufacturer)
- Mechanical: no battery required
Specifications
| Specification | Value |
|---|---|
| Model | 505-740 |
| Series | 505 |
| Type | dial caliper, mechanical |
| Units | inch only |
| Range | 0-6 in |
| Accuracy | ±0.001 in (per the manufacturer) |
| Graduation | 0.001 in |
| Pitch per revolution | 0.2 in |
| Mass | 175 g |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 505-740 | BP-G-MIT-505740 |
