Description

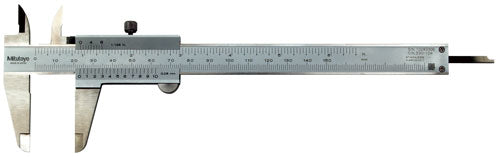

The Mitutoyo 530-104 is a mechanical vernier caliper from the Series 530 with a range of 0-150 mm / 0-6 in. It is a dual-unit model: the manufacturer lists a 0.05 mm lower-scale graduation and a 1/128 in upper-scale graduation, with a stated accuracy of ±0.05 mm.
Per the manufacturer, the Series 530 has a 14-degree face angle for easier reading and raised scales that slide easily and protect the graduation markings. The body is hardened stainless steel, corrosion resistant, and a lock screw holds the sliding jaw position. The listed mass is 143 g and the model includes a depth measuring bar. Purely mechanical: no battery or electronics.
Features
- Dual-unit vernier caliper: 0-150 mm / 0-6 in
- Lower scale graduation 0.05 mm, upper scale 1/128 in (per the manufacturer)
- Accuracy ±0.05 mm (per the manufacturer)
- 14-degree face angle for easier reading (per the manufacturer)
- Raised scales protect the graduation markings
- Hardened, corrosion-resistant stainless steel construction
- Lock screw holds the sliding jaw position
- Includes a depth measuring bar
- Mechanical: no battery required
Specifications
| Specification | Value |
|---|---|
| Model | 530-104 |
| Series | 530 |
| Type | vernier caliper, mechanical |
| Units | metric and inch |
| Range | 0-150 mm / 0-6 in |
| Accuracy | ±0.05 mm (per the manufacturer) |
| Graduation, lower scale | 0.05 mm |
| Graduation, upper scale | 1/128 in |
| Depth measuring bar | yes |
| Mass | 143 g |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 530-104 | BP-G-MIT-530104 |
