Description

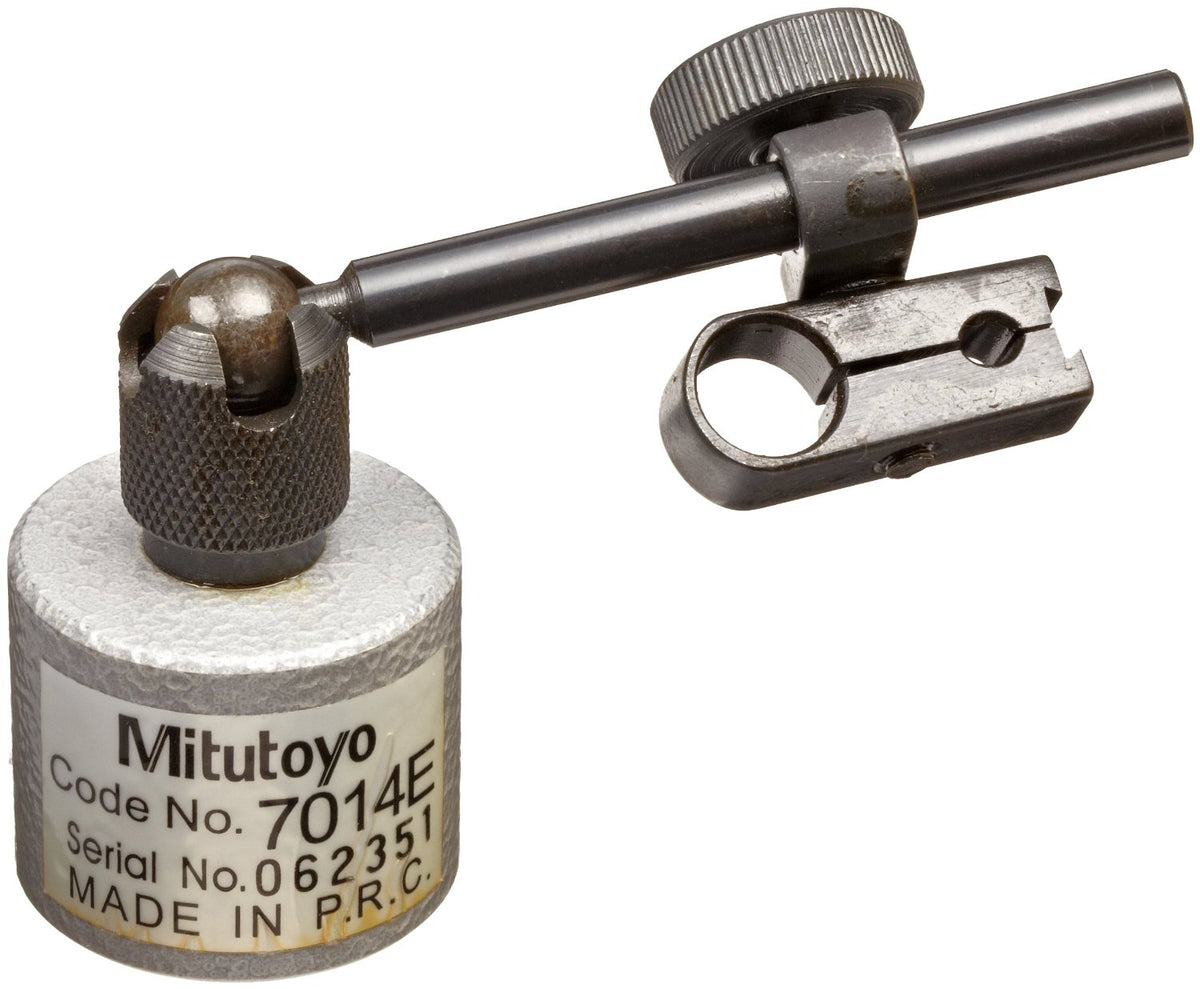

The Mitutoyo 7014E-10 is a mini magnetic stand from the manufacturer's Series 7 magnetic stands, designed to hold dial indicators and dial test indicators. The manufacturer lists applicable holding stem diameters of 8 mm, 9.53 mm (3/8 in) and 6 mm, and states that it has a dovetail groove.
This model is the type without a magnet ON/OFF function, so it is a fixed-magnet stand. Holding stems are given in metric and 3/8 in sizes. Sold as a single stand; indicator not included.
Features
- Mini magnetic stand
- Holds dial indicators and dial test indicators (per the manufacturer)
- Applicable holding stem diameters: 8 mm, 9.53 mm (3/8 in), 6 mm
- Dovetail groove provided
- Without magnet ON/OFF function
- Series 7 magnetic stands
- Indicator not included
Specifications
| Specification | Value |
|---|---|
| Model | 7014E-10 |
| Type | mini magnetic stand, Series 7 |
| Applicable holding stem diameter | 8 mm, 9.53 mm (3/8 in), 6 mm |
| Dovetail groove | yes |
| Magnet ON/OFF function | none |
| Quantity | 1 piece |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7014E-10 | BP-G-MIT-7014E10 |
