Description

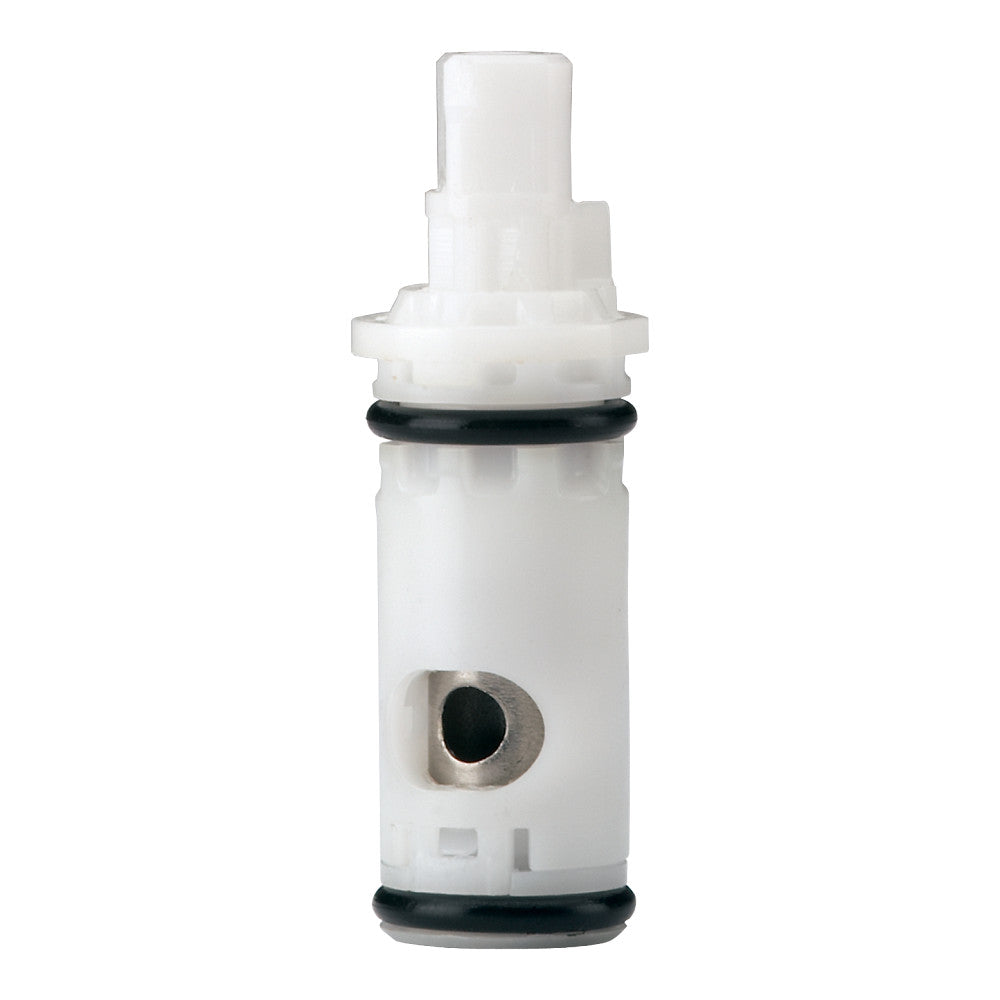

The Moen 1224 is a replacement cartridge for two-handle faucets, used on either the hot or the cold side. Moen lists it for many of its two-handle kitchen and bathroom faucets and for two- or three-handle shower valves with a diverter.
Moen advises identifying the old cartridge first: some two-handle faucets made since about 2015 use a 1234 cartridge instead, and the 1224 and 1234 are not interchangeable. The cartridge is held by a retainer nut, handled separately. Sold as a single cartridge.
Features
- Two-handle replacement cartridge, hot or cold side
- Listed by Moen for two-handle kitchen, bathroom and shower valves
- Retainer nut system
- Not interchangeable with the Moen 1234, per Moen
- Moen instruction sheet available for removal and installation
Specifications
| Specification | Value |
|---|---|
| Model | 1224 |
| Quantity | 1 piece |
| Type | Two-handle replacement cartridge (hot or cold) |
| Application | two-handle kitchen, bathroom and shower faucets |
| Retainer | cartridge nut (sold separately) |
| Compatibility note | not interchangeable with Moen 1234 |
| Installation sheet | Moen INS745C |
| Weight | approx. 0.05 kg (estimate) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 1224 | BP-HW-MOE-1224 |
