Description

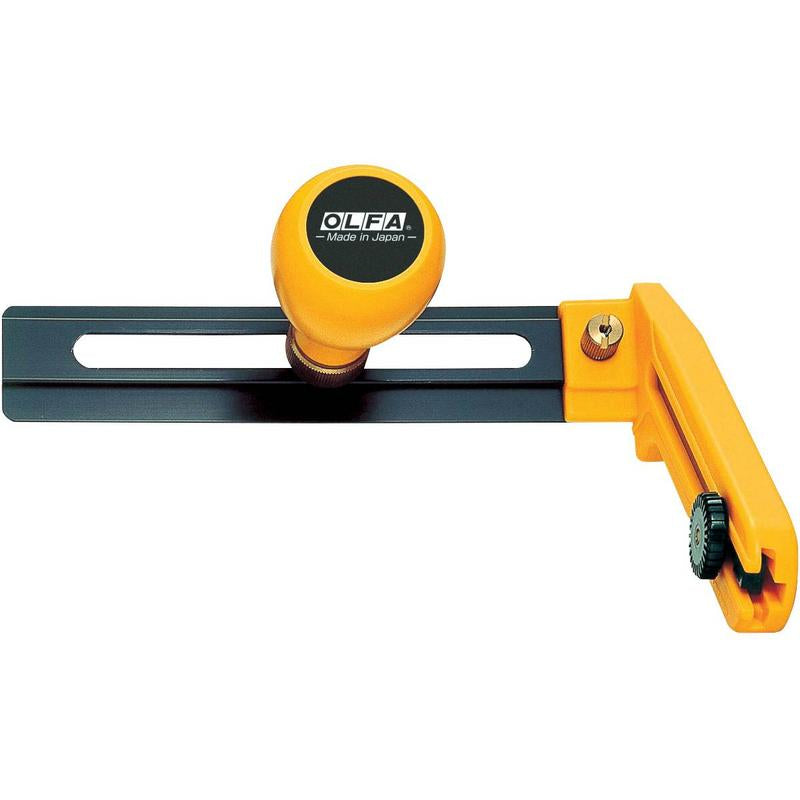

The OLFA CMP-2, cuts circles from 3 to 12 in (7.6 to 30.5 cm) in diameter. The circle size is set with an adjustment dial, and the manufacturer states the blade can be set for full-circle or half-circle cuts.
It comes with a silver snap-off blade installed, with eight snap-off segments, and a ratchet-lock wheel sets the blade depth. The manufacturer lists materials such as paper, drywall, acetate and rubber gasket material. The tool also accepts the 18 mm L-SOL-10B and LBB blades. Sold as a single tool.
Features
- Cuts circles from 3 to 12 in (7.6 to 30.5 cm) in diameter
- Adjustment dial for the circle size
- Blade can be set for full-circle or half-circle cuts, per the manufacturer
- Comes with a silver snap-off blade, eight segments
- Ratchet-lock wheel to set blade depth
- Also accepts 18 mm L-SOL-10B and LBB blades
- Sold as a single tool
Specifications
| Specification | Value |
|---|---|
| Model | CMP-2 |
| Quantity | 1 piece |
| Type | circle cutter (compass cutter) |
| Circle diameter | 3 to 12 in (7.6 to 30.5 cm) |
| Included blade | silver snap-off, eight segments |
| Depth adjustment | ratchet-lock wheel |
| Size adjustment | adjustment dial |
| Other compatible blades | 18 mm L-SOL-10B, LBB |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| CMP-2 | BP-G-OLF-CMP2 |
