Description

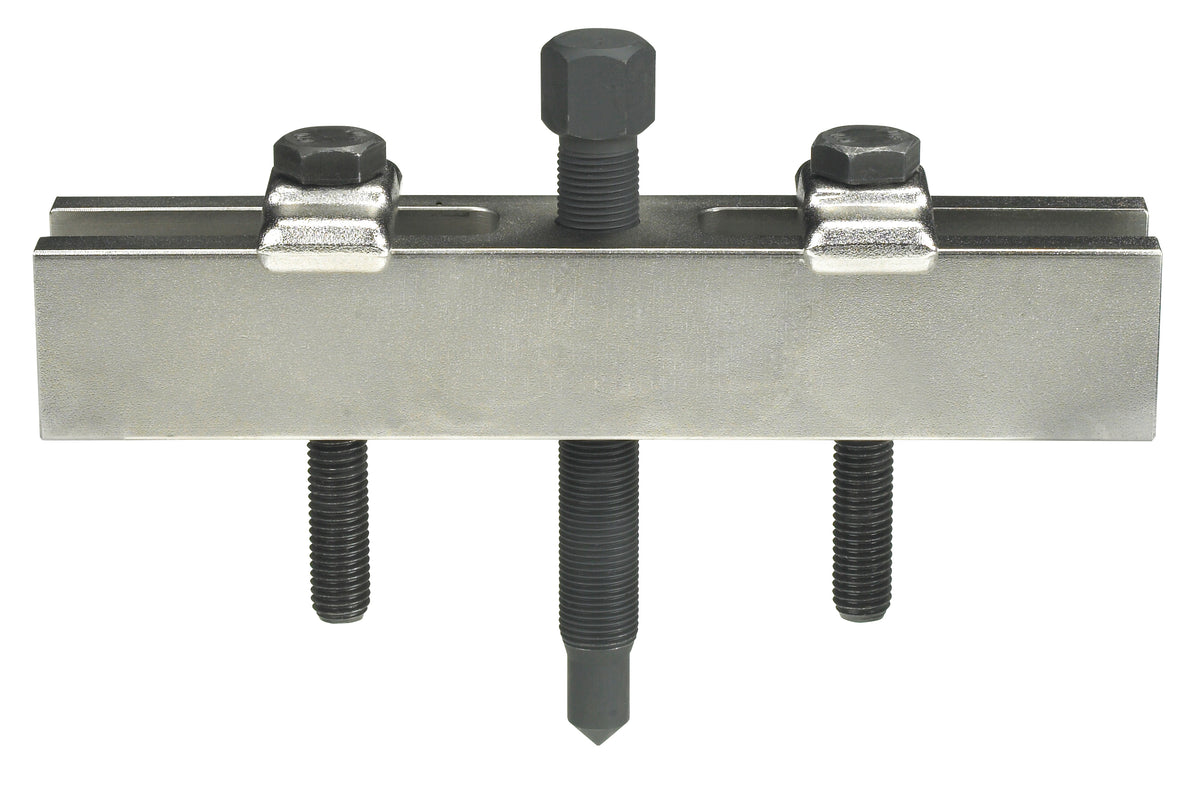

The OTC 6614 is a heavy-duty gear puller that, per the manufacturer, removes gears up to 7-1/4 in in diameter, including most cam gears. The 8-3/8 in crossbar is rated to 8 tons by the manufacturer, and the slimmer cross block design is stated to give more room to set up in tight quarters.
The set includes one crossbar, one forcing screw, two sliding plates and two metric bolts (M12x1.75, 90 mm, grade 10.9, tempered steel with a rust inhibitor coating, per the manufacturer). The 5-3/4 in forcing screw is threaded 5/8 in-18 with a 3-1/4 in pulling reach and a 3/4 in hex drive.
Features
- Heavy-duty gear puller; removes gears up to 7-1/4 in in diameter, including most cam gears, per the manufacturer
- 8-3/8 in crossbar rated to 8 tons, per the manufacturer
- Spread range 2 in to 7-1/4 in
- Accommodates bolt diameters up to 5/8 in
- Sliding plates keep gear bolts up to 1/2 in diameter centered
- 5-3/4 in forcing screw, 5/8 in-18, 3-1/4 in pulling reach, 3/4 in hex drive
- Includes two M12x1.75 x 90 mm grade 10.9 bolts
- Treated to resist corrosion, per the manufacturer
Specifications
| Specification | Value |
|---|---|
| Model | 6614 |
| Quantity | 1 set |
| Type | heavy-duty gear puller |
| Crossbar | 8-3/8 in, rated to 8 tons (per manufacturer) |
| Spread range | 2 in to 7-1/4 in |
| Bolt diameter accommodated | up to 5/8 in |
| Sliding plates | for gear bolts up to 1/2 in |
| Forcing screw | 5-3/4 in, 5/8 in-18 thread, 3-1/4 in pulling reach, 3/4 in hex drive |
| Included | 1 crossbar, 1 forcing screw, 2 sliding plates, 2 bolts (M12x1.75 x 90 mm, grade 10.9) |
| Product dimensions | 8.375 x 1.5 x 1.5 in |
| Product weight | 1.91 kg (4.22 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 6614 | BP-G-OTC-6614 |
